| Product Name: | Wheelset Press | Max. Cylinder Force: | 350 Tons |
|---|---|---|---|
| No. Of Hydraulic Cylinder: | 2 (Double-end Cylinders) | Pison Stroke: | 800mm |
| Power Supply: | 3-ph AC, 380V/50HZ | Max. Wheelset Weight: | 8000kg |
| Wheel Diameter: | 1150~1250mm | Axle Length: | 2200~2500mm |
| High Light: | Hydraulic Wheel Press,Wheel Press For Locomotive Wheelset,1250mm Diameter Wheel Press |
||

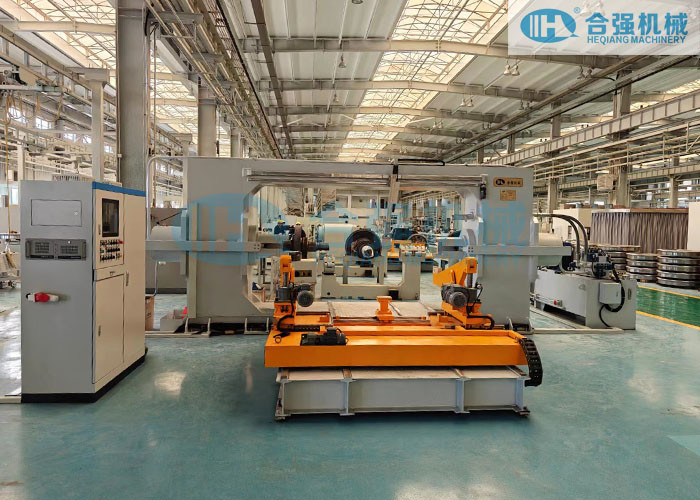

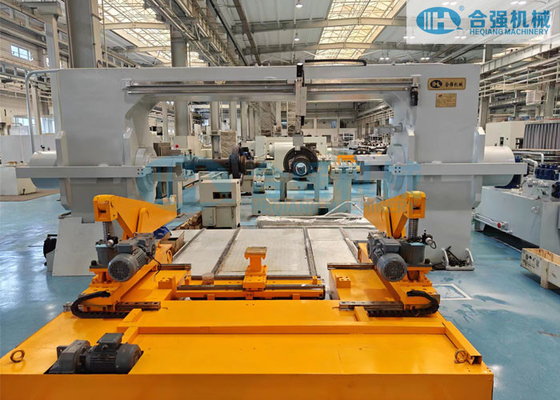

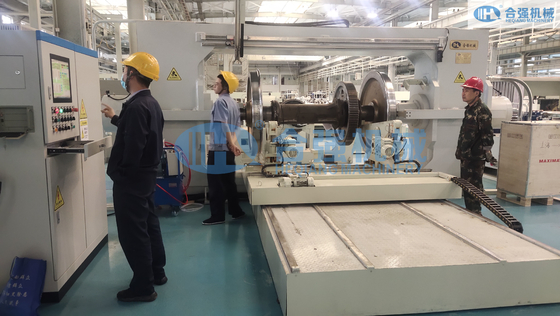

This Hydraulic Wheelset Press is a horizontal hydraulic wheel assembly press machine, mainly used for mounting the locomotive wheelset wheels, and perform the backpressure test. The operation is automatically controlled by Siemens PLC and AdvanTech industrial PC. Only one operator is required to complete all the operations.
The machine will be provided a high-pressure oil injection system for easy wheel mounting and dismantling, and generate the required pressing reports.
| Parameter | Value |
|---|---|
| Product Name | Double cylinder Wheelset Press |
| Functions | Mounting railway wheelsets and do backpressure test |
| Max. Cylinder force | 3500 kN |
| No. of hydraulic cylinder | 2 (1 left and 1 right) |
| Piston stroke | 800 mm |
| Pressing speed | 0~5 mm/s |
| Fast forward / return speed | 0~20 mm/s |
| Pressure sensor accuracy | 0.25%FS |
| Displacement sensor accuracy | 0.01 mm |
| Ram positioning accuracy | ≤ 0.01mm |
| Max. hydraulic system pressure | 31.5 MPa |
| Power supply | 3-PH AC, 380V/50HZ |
| Total installed power | ≤ 30 kW |
| Pressing cycle time | ≤ 15 minutes/axle |
| Max. wheelset weight | 8000 kgs |
| Wheel diameter range | 1150~1250 mm |
| Axle length range | 2200~2500 mm |
Heqiang Machinery's Wheelset Press is a hydraulic wheel press machine, specially designed for wheelset assembly. It is applicable for a maximum wheel diameter of 1250mm, making it perfect for a wide range of applications. Made from high-strength steel. The packaging is nude packages and wooden cases and the delivery time is 6 months after down payment and design approval. Payment can be made by T/T or L/C. Heqiang Machinery's Wheelset Press is ideal for railway maintenance workshops and vehicle production factories.
Are you looking for a reliable horizontal wheel press supplier? Heqiang Machinery presents you the best Wheelset Press available in the market. Our press suits for the wheelsets with a maximum weight of 8T, wheel diameter of 1150~1250mm and maximum axle length of 2500mm. The machine weight is about 30T with a total installed power of 30 KW. The press will be detail designed according to the provided wheelset drawings and other requirements after the contract is awarded.
Ordering our Wheelset Press is very simple. The minimum order quantity is 1 set and the delivery time is 6 months after down payment and design approval. We accept payment terms such as T/T and L/C. We also provide nude packages and wooden cases for packaging.
What are you waiting for? Contact us now and get your Wheelset Press from Heqiang Machinery!
We are committed to providing our customers with the best possible technical support and service. We provide a comprehensive range of services to ensure that your WheelSet Press product is working optimally.
Wheelset Press are packaged in nude package and wooden cases, securely packed in a box with protective materials to ensure that your product arrives in perfect condition.
The shipping space required for one such wheelset is 2 containers - 1x20'GP + 1x40'HQ.
