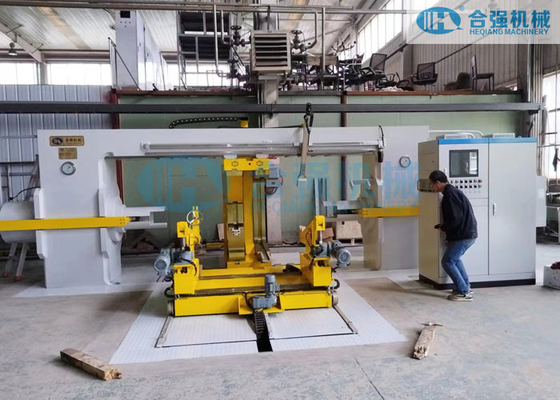

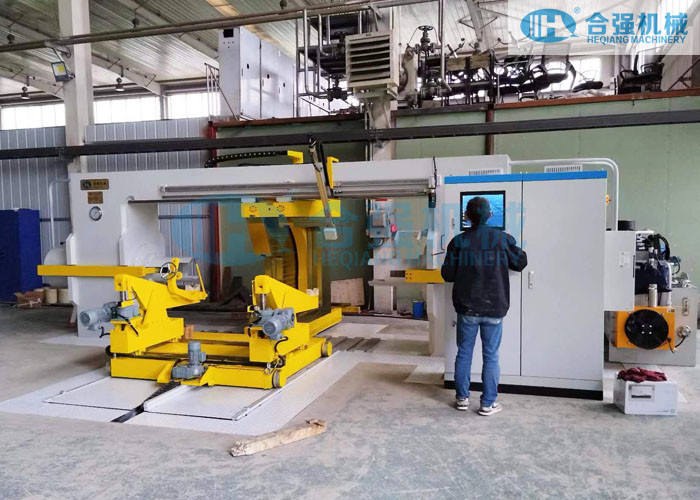

200-500T Railway Wheelset Press With Double Cylinders

I'm Online Chat Now
Certification
China Hubei Heqiang Machinery Development Limited by Share Ltd certification
China Hubei Heqiang Machinery Development Limited by Share Ltd certification
We bought from Hubei Heqiang a 200t Hydraulic Wheel Press from 20 May, 2020. Since it was put into operation in Febuary, 2021, the press was in good operation without problems. The opeation is very easy and we are very happy with this purchase.

—— Milos Vukovic

Hi Freeman, thanks for your support on the wheelset press. Everything is now in perfect condition and working properly.

—— JORGE CASTRO

Bonjour, Je vous confirme notre satisfaction de travail de votre équipe qui était chargé de l'installation et mise en service des presses dans nos ateliers.

—— Hacen OULD

200-500T Railway Wheelset Press With Double Cylinders

200-500T Railway Wheelset Press With Double Cylinders
200-500T Railway Wheelset Press With Double Cylinders
video play

Large Image :  200-500T Railway Wheelset Press With Double Cylinders Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD380,000~500,000 per set
Packaging Details: Nude packages and Wooden cases (1x20'GP+1x40'HQ)
Delivery Time: 6 months after down payment and design approval
Payment Terms: T/T, L/C
Supply Ability: 20 sets per year
Detailed Product Description
Product Name: Wheelset Press Material: High-strength Steel
Max. Pressing Force: 200-500T As Per Required No. Of Ram Cylinder: 2 Pcs
Control System: Siemens PLC And Advantech IPC Max. Wheel Diameter: 1250mm
Max. Axle Length: 2500mm Total Installed Power: Max. 30KW
Installation Spare Required: Approx. 9000x6000mm Machine Warranty: 1 Or 2 Years
High Light:

Railway Wheelset Press

,

500T Railway Wheelset Press

,

Wheelset Press With Double Cylinders

Product Description:

Wheelset Press is a horizontal press specially designed for wheelset mount and dismount. It is an ideal choice for railway wheelset manufacturing and maintenance industry. With a maximum wheel diameter of 1250mm, maximum wheelset weight of 5T as per required and maximum axle width of 2500mm, the Wheelset Press is powered by 380V/50HZ. It provides stable and reliable performance for wheelset mount and dismount.



Features:

  • Product Name: Wheelset Press
  • Max. Axle length: 2500mm
  • Material: High-strength Steel
  • Weight: Approx.30T
  • Safety Protection: Emergency Stop Button
  • Wheel press-fitting machine
  • Hydraulic Wheel Press
  • Hydraulic Wheel Press Machine


Technical Parameters:

Parameter Description
Product Name Wheelset Press
Weight Approx. 30T
Max. Wheelset Weight 5T as per required
Max. Axle length 2500mm
Pressure Monitoring Pressure Sensor
Control System Siemens PLC and AdvanTech Industrial PC
Power Supply 380V/50HZ or as per required
Total Installed Power Max. 30KW
Pressure sensor Accuracy 0.25%FS
Max. Pressing Force 200-500T as per required


Applications:

Wheelset Press from Heqiang Machinery (HQ01, ISO9001 Certified)

The Heqiang Machinery Wheelset Press (model HQ01) is a high-performance wheelset mount and dismount press machine that has been certified by ISO9001. It is suitable for a variety of applications and is capable of providing accurate and reliable operation.

Features:
  • Minimum Order Quantity: 1 set
  • Packaging Details: Nude packages and Wooden cases
  • Delivery Time: 6 months after down payment and design approval
  • Payment Terms: T/T, L/C
  • Weight: Approx.30T
  • Pressure Monitoring: Pressure Sensor
  • Max. Wheelset Weight: 5T As Per Required
  • Max. Pressing Force: 200-500T As Per Required
  • Safety Protection: Emergency Stop Button

The Heqiang Machinery Wheelset Press is a reliable product for mount and dismounting wheelsets with minimum effort. It is designed to ensure accuracy and safety with its pressure monitoring system, max. wheelset weight capacity and emergency stop button.

The Heqiang Machinery Wheelset Press is ideal for those who need a cost-effective and reliable solution for their wheelset mount and dismounting needs. It is available in various sizes and configurations to suit different applications.



Customization:

Wheelset Press

Brand Name: Heqiang Machinery

Model Number: HQ01

Place of Origin: China

Certification: ISO9001

Minimum Order Quantity: 1 set

Packaging Details: Nude packages and Wooden cases

Delivery Time: 6 months after down payment and design approval

Payment Terms: T/T, L/C

Pressure Accuracy: ±1%

Total Installed Power: Max. 30 KW

Material: High-strength Steel

Power Supply: 380V/50HZ

Safety Protection: Emergency Stop Button

Wheelset Press Features

  • Wheel press-fitting machine
  • Horizontal Press
  • Hydraulic Wheel Press


Support and Services:

WheelSet Press Product Support and Services

WheelSet Press offers excellent product support and services to our customers. Our team of experts can help you with any questions or issues you may have, from installation to troubleshooting. We provide 24/7 technical support via email, phone, and live chat.

Our customer service team can help you with any order or product inquiries. We offer a variety of services including product warranties, returns, exchanges, and replacements. We are committed to providing our customers with quality products and services.

We also have an extensive online library of FAQs and tutorials to help you get the most out of your product. Our website also includes a knowledge base and forums where you can ask questions and get help from our experienced staff.

At WheelSet Press, we strive to provide our customers with the best products and services. If you have any questions or need assistance, please don’t hesitate to contact us.



Packing and Shipping:

Wheelset Press Packaging and Shipping

Wheelset Press products are carefully packaged and shipped in sturdy boxes to ensure safe delivery. Each box is labeled with the Wheelset Press logo and product name.

For international orders, we work with trusted shipping partners to provide fast and reliable delivery. All shipments are tracked and insured for added security.
