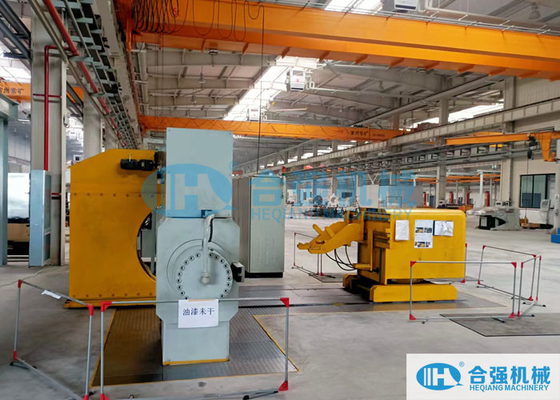

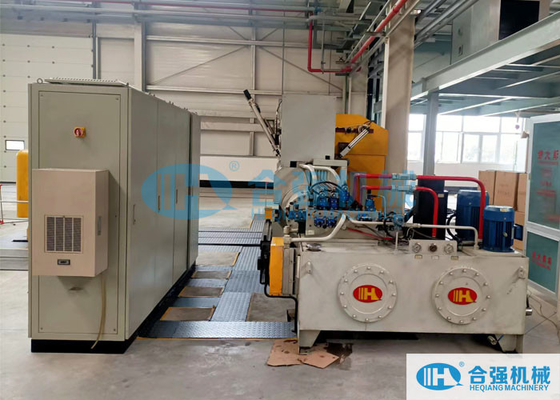

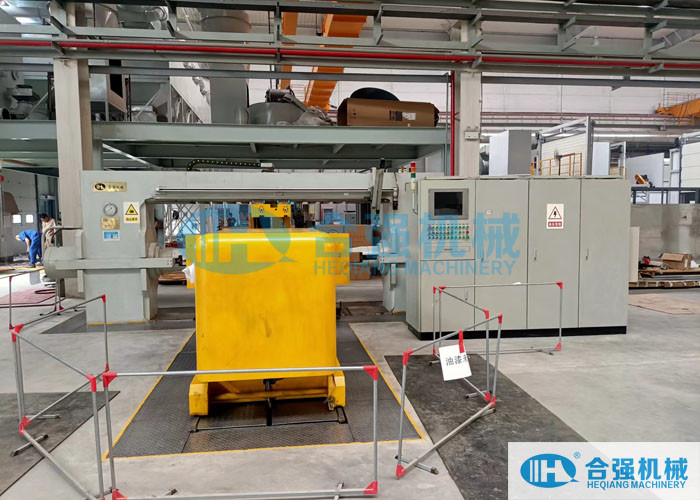

Railway Automatic Wheelset Press Siemens PLC Control Fully Automatic With Rotary Trolley

Railway Automatic Wheelset Press Siemens PLC Control Fully Automatic With Rotary Trolley
Railway Automatic Wheelset Press Siemens PLC Control Fully Automatic With Rotary Trolley
video play

Large Image :  Railway Automatic Wheelset Press Siemens PLC Control Fully Automatic With Rotary Trolley Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ01-300
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: USD450,000~550,000 per set
Packaging Details: Nude packages + Wooden cases
Delivery Time: 6~7 months after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 20 sets per year
Detailed Product Description
Application: Railway Depots, Vehicle Enterprises Usage: Mount And Dismount Wheelsets
Pressing Force: 300 Tons Number Of Cylinder: 2pcs (1 Left + 1 Right)
Wheelset Carriage: Rotary Trolley Control: Siemens PLC
Operation Mode: Fully Automatic After-sale Service: Engineer Available For Oversea Service
High Light:

railway Automatic Wheelset Press

,

Fully Automatic Automatic Wheelset Press

,

PLC Control railway wheel press

Railway Automatic Wheelset Press With Rotary Support Trolley

Horizontal Hydraulic Wheel Press-Mounting Machine



Overview:

Hubei Heqiang Machinery is the No.1 manufacturer of wheelset press machines in China. It offers the most advanced wheel presses available in the railway applications. The wheelset presses are used to mount and dismount the elements on the axle (wheel discs, brake discs, gears and bearings).



Application scope of the Wheel Press:

This automatic double cyliner wheel set press is used to mount and dismount the wheelset components of the railway passenger cars, wagons, metros, intercity cars etc.). It can monitor and record the pressing data, and export the pressing curve.  One positioning without reversing the axle to proceed both sides’ mounting and dismounting.



Technical parameters of the Hydraulic Wheel Press:

 Maximum cylinder force  300 tons
 Number of ram cylinder  2 pcs (1 left + 1 right)
 Piston stroke  700 mm
 Approach speed  0~20 mm/s
 Pressing speed  0~3 mm/s
 Return speed  0~24 mm/s
 Wheelset Support Trolley  180 degree Rotary ttrolley
 Inner distance control accuracy  Less than 0.5 mm
 Wheel position difference control accuracy  Less than 0.5 mm
 Ram positioning accuracy  Less than 0.04 mm
 Error of measuring accuracy  Not more than 0.01 mm
 Concentricity of cylinders' centerline  Not more than 0.3 mm
 Maximum wheelset weight  3000 kg
 Applicable axle length  1700 ~ 2300 mm
 Applicable wheel diameter  Maximum 1100 mm

(*Above parameters are indicative, and can be modified as per customer's requirements.)



Machine features of the Horziontal Wheelset Press:

  • The Wheel press machine is a horizontal hydraulic wheel press and will be installed in a pit.
  • The wheel press-fitting machine is able to mount and dismount both wheels on the same axle without turning the axle and in a sequence first the wheel at one side of the axle then the wheel at the other side.
  • The wheel assembly machine will be able to complete the mounting/dismounting of two wheels onto / off the axle simultaneously once the wheels have been loaded onto the Machine.
  • Gantry frame structure, with high strength, good rigidity and less deformation.
  • Double-end cylinder pressing. Only need one positioning without 180 degree reversal of the axle to proceed both sides’ wheel mounting and dismounting.
  • The Wheel mounting and dismounting press is equipped with special patented centring devices at both ends of two ram cylinders for center hole positioning.
  • Unique Invention patented cylindrical ram for wheel mounting, with high pressing accuracy.
  • The CNC wheel press is equipped with a 180 degree rotary trolley for wheelset loading and unloading. It will exit from the press during the operation.
  • The wheel press is equipped with a gearbox support to support the gearbox during the whole process.
  • The Machine can track and control the whole process, detect the pressing condition of the wheelset, and analyze and process it through industrial computer. It can export the force vs displacement curve and other results onto the screen and printer.
  • The Machine is designed with acoustic-light alarm to ensure the safe and reliable operation.



If you are interested in our wheelset presses, please feel free to contact us for more information!
