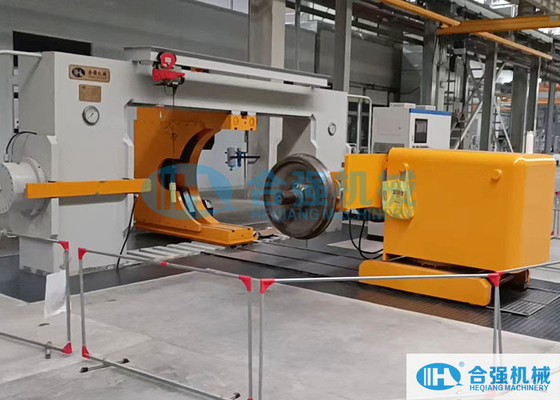

Automatic Railway Horizontal Wheel Press For Wheelset Pressing Out

Automatic Railway Horizontal Wheel Press For Wheelset Pressing Out
Automatic Railway Horizontal Wheel Press For Wheelset Pressing Out Automatic Railway Horizontal Wheel Press For Wheelset Pressing Out Automatic Railway Horizontal Wheel Press For Wheelset Pressing Out

Large Image :  Automatic Railway Horizontal Wheel Press For Wheelset Pressing Out Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ03-300
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: USD250,000~400,000 per set
Packaging Details: Nude packages and Wooden cases
Delivery Time: 6 months after advance payment
Payment Terms: T/T, L/C
Supply Ability: 20 sets per year
Detailed Product Description
Application: Railway Workshops Usage: Dismount Wheelsets
Pressing Force: 300 Tons Number Of Ram Cylinder: 2pcs (1 Left + 1 Right)
Support Trolley: One Set, Motorized Operation Mode: Automatic And Manual
Control: Siemens PLC After-sales Service: Engineer Available To Service Machiney Oversea
High Light:

Automatic Horizontal Wheel Press

,

Wheelset Pressing Out Horizontal Wheel Press

,

Horizontal automatic wheel press

Automatic Railway Horizontal Wheel Press for Wheelset Pressing-Out, with Double Cylinders


Application scope:
This Horizontal Wheel Press is used to press-out the wheelset wheels, brake discs and driven gear from the axle for the railway rolling stocks (passenger cars, metros, intercity cars, EMU etc.). With a high-pressure oil injection pump for easy wheel dismounting. Only one operator required to complete the operation.

Technical parameters:

 Max. cylinder force  300 tons
 Numder of Ram cylinder  2 pcs (1 left + 1 right)
 Piston stroke  700mm
 Ram approach speed  0~20 mm/s
 Ram pressing speed  0~4 mm/s
 Max load of the centring devices  7000 kg
 Axle support trolley  1 set, Motorized
 Rotation angle of the trolley  180°
 Installed power  approx. 30 kW
 Pressure sensor accuracy  ≤ 0.5%FS
 Centerline coaxiality of the two ram cylinders  ≤ 0.5 mm
 Maximum Wheelset weight  2000 kg
 Track gauge  1435 mm
 Applicable Axle length  2000 ~ 2300 mm
 Applicable Wheel diameter  Φ770 ~ Φ920 mm
 Brake disc diameter  Φ550 ~ Φ670 mm
 Oil injection pump  1 set
 Maximum oiling pressure  200 MPa

(*Above parameters are indicative, and can be modified as per customer's actual requirements.)



Machine features:

  • The wheel demount press is a horizontal hydraulic wheel press and will be installed in a foundation pit.
  • The wheelset press is able to dismount both wheels on the same axle simultanously without reversing the axle.
  • Double-end cylinders for dismounting.
  • One time positioning to dismount the 2 wheel discs without reversal of the axle.
  • Overall rantry frame structure, Movable resistant column.
  • Provided with overcrane on the top crossbeam. The electric hoist will hook the gearbox end during the dismounting oeration.
  • Movable slider device with at 2 replaceable inserts to block the wheels, gears or brake discs for dismounting.
  • Special patented centring devices at both ends of two ram cylinders for center hole positioning.
  • Rotary trolley for wheelset loading and unloading.
  • Siemens S7-300 PLC and AdvanTech Industrial PC to control the operation.
  • A High-pressure oil injection pump is provided for easy wheel dismounting.


Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.

Spare parts:
To use original spare parts and consumables can optimize machine productivity. We can guarantee that there are enough spare parts and guarantee a preferential price and fundamentally to control the quality of the repair.
It is our commitment to fix all problems as quickly as possible after they are brought to our attention. If you have any questions about our support policies please contact us.

Cooperation contact:
If you are interested in our wheelset presses, please feel free to contact us for more information the first time.
