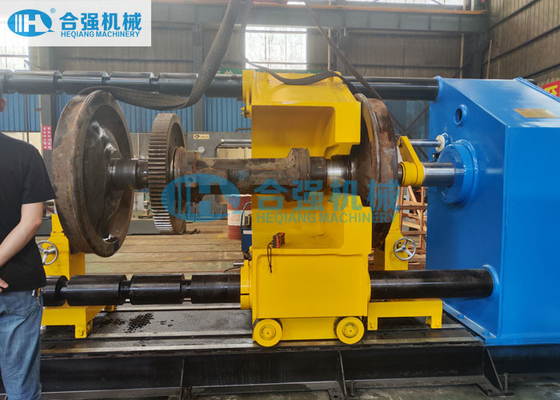

Semi-Automatic Wheelset Press For Wheelset Fitting And Pressing Out

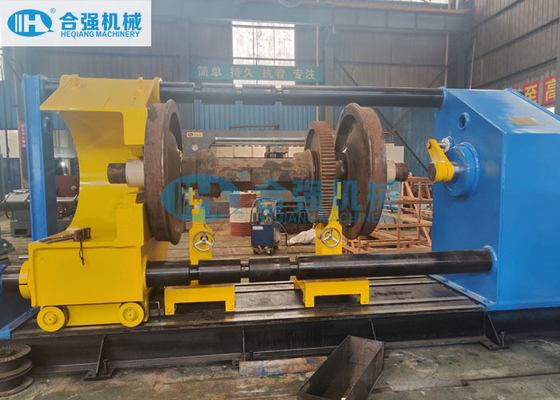

Semi-Automatic Wheelset Press For Wheelset Fitting And Pressing Out

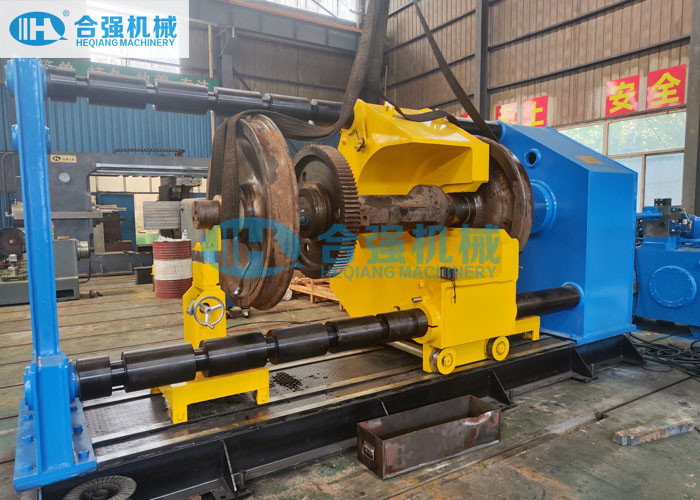

Semi-Automatic Wheelset Press For Wheelset Fitting And Pressing Out
video play

Large Image :  Semi-Automatic Wheelset Press For Wheelset Fitting And Pressing Out Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ09
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD80,000~150,000 per set
Packaging Details: Nude packages and Wooden cases
Delivery Time: 4 months after down payment
Payment Terms: T/T, L/C
Supply Ability: 30 sets per year
Detailed Product Description
Product Name: Railway Wheelset Press Application: Railway Workshops
Function: Pressing On And Out Wheelset Wheels Cylinder Force: 200 To 800 Tons
Number Of Ram Cylinder: 1 Pc Piston Stroke: 700 Mm
Controls: Siemens PLC + AdvanTech PC Operation Mode: Semi-automatic + Manual
High Light:

800 tons Wheelset Press

,

Siemens PLC Wheelset Press

,

PLC Railway Wheelset Press

Semi-Automatic Wheelset Press for Wheelset Fitting and Pressing-Out

Railway Wheel Press Machine , Hydraulic Wheel Press-Mounting Machine



Hubei Heqiang is the No.1 manufacturer of wheelset presses in China. It offers the most advanced wheel set pressing equipment available in the railway and other relevant industry. The wheelset presses are mainly used to mount and dismount the elements on the axle (wheel discs, brake discs and bearings etc). With single and double cylinder version available for option and capacity range from 200 to 800 tons.



Application Scope:

This single cylinder wheel press is used to press-on and press-out the wheelset wheels. With Curve recording system. It needs to reverse the axle to mount or dismount the other side after one side wheel operation completed. A high-pressure oil injection pump is available for option for easy wheel pressing-on and pressing-off.

  • Pressing-on the wheelset wheels (colding pressing or oiling pressing both ok).
  • Pressing-off the wheelset wheels with lubricant holes (cold pressing).
  • Pressing-off the wheelset wheels without lubricant holes (oiling pressing). (It requires a high-pressure oil injection pump.)



Technical Parameters:

 Cylinder force

 Available at 200 to 800 tons

 Number of Ram cylinder

 1 pc (Single-end)

 Piston stroke

 700 mm

 Maximum axle length 2300 mm
 Maximum wheel diameter Φ1200 mm

 Approach speed

 Approx. 10 mm/s

 Pressing speed

 Approx. 2mm/s

 Number of Support trolley

 2 sets

 Max load of the support trolley 5 tons

 Main power supply (AC 3-ph)

 380V/50Hz or as per required

 Control voltage 24V DC

(*The above parameters are indicative and can be modified as per customer's actual requirements. The customer shall provide the detail wheelset drawings for detail design work after contract awarded.)


Machine Structure and Features:

  • The wheel press mainly consists of cylinder column, movable column, rear column, support rods, chassis, caliper claws, support trolleys, hydraulic system and eletrical control system.
  • With Caliper claws on the movable column to lock the movable column at the required position.
  • With 2 support trolleys for axle supporting. Manually move the trolley and adjust the support height to meet the different wheelsets.
  • Single cylinder to mount and dismount the wheelset.
  • It requires to reverse the axle (180°) to mount or dismount the other side after one wheel operation completed.
  • Only to replace the pressing tool to meet the different wheelsets.
  • With Siemens PLC and AdvanTech industrial PC.
  • A displacement sensor at the end of the ram cylinder for detecting and displaying the displacement on the industrial PC.
  • With curve recording system and can export the pressing report..
  • A high-pressure oil injection pump is option for easy wheel pressing-on and pressing-off.


Warranty & After-sale Service:

  • One year of free warranty period.
  • Our engineers are available for oversea service to carry out the installation and commissioning work.
  • Also the customer can take this work themselves as per our instructions and we provide free remote guidance.


For more information about the wheel presses, please feel free to contact us.
