150 Ton Wheelset Press With Single Cylinder Oiling Dismounting

I'm Online Chat Now
Certification
China Hubei Heqiang Machinery Development Limited by Share Ltd certification
China Hubei Heqiang Machinery Development Limited by Share Ltd certification
We bought from Hubei Heqiang a 200t Hydraulic Wheel Press from 20 May, 2020. Since it was put into operation in Febuary, 2021, the press was in good operation without problems. The opeation is very easy and we are very happy with this purchase.

—— Milos Vukovic

Hi Freeman, thanks for your support on the wheelset press. Everything is now in perfect condition and working properly.

—— JORGE CASTRO

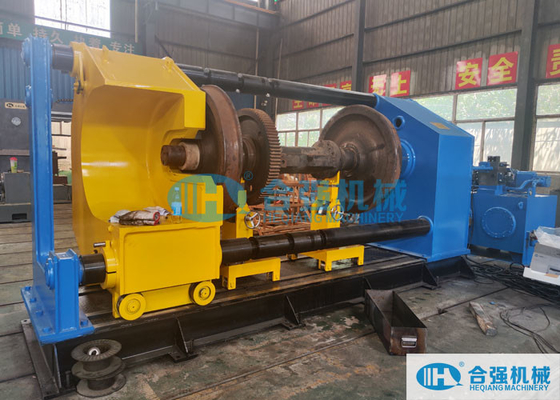

150 Ton Wheelset Press With Single Cylinder Oiling Dismounting

150 Ton Wheelset Press With Single Cylinder Oiling Dismounting
150 Ton Wheelset Press With Single Cylinder Oiling Dismounting
video play

Large Image :  150 Ton Wheelset Press With Single Cylinder Oiling Dismounting Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ09-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD80,000~90,000 per set
Packaging Details: Nude packages and Wooden cases
Delivery Time: 4 months after down payment
Payment Terms: T/T, L/C
Supply Ability: 30 sets per year
Detailed Product Description
Product Name: Wheelset Press Application: Railway Workshops
Function: Mount And Dismount Wheelset Wheels Cylinder Force: 150 Tons
Number Of Ram Cylinder: 1 Pc Operation Mode: Semi-automatic + Manual
After-service: On-line Service Available Installation Service: Engineers Available For Oversea Installation & Commissioning
High Light:

Single Cylinder Wheelset Press

,

Oiling Dismounting Wheelset Press

,

Single cylinder Wheel Press Machine

150 Tons Wheelset Press With Single Cylinder Oiling Dismounting, Hydraulic Wheel Press-Mounting Machine



Application Scope:

This Single cylinder wheelset press is used to mount and oiling dismount the wheelset wheels. With curve recording system. It needs to reverse the axle (180°) to mount or dismount the other side wheel.

  • Mount the wheelset wheels both with and without lubricant holes;
  • Oiling dismount the wheelset wheels with lubricant holes. (It requires a high-pressure oil injection pump for dismounting)



Technical Parameters:

 Cylinder force

 150 tons

 Number of Ram cylinder

 1 pc (Single-end)

 Piston stroke

 700 mm

 Maximum axle length  2300 mm
 Maximum wheel diameter  Φ1100 mm

 Approach speed

 Approx. 10 mm/s

 Pressing speed

 Approx. 2mm/s

 Inclination angle of axis plane on two support rods

 30°

 Number of Support trolley

 2 sets

 Max load of the support trolley  3 tons

 Working pressure of hydraulic system

 20 MPa

 Main power supply (AC 3-ph)

 380V/50Hz or as per required

 Control voltage  24V DC

(*The above parameters are indicative and can be modified as per customer's actual requirements.)


Machine Structure and Features:

  • Single cylinder to mount and dismount the wheelset.
  • It requires to reverse the axle to mount or dismount the other side wheel.
  • It requires a high-pressure oil injection pump for wheel dismounting.
  • With recording system and can export the pressing report.
  • The wheel press machine mainly consists of cylinder column, resistant column, rear column, support rods, chassis, caliper mechanism, support trolleys, hydraulic system, eletrical control system.
  • The U-opening of the resistant column and rear column is side opening for the convenience of wheelset mounting and dismounting. Only to replace the mount and dismount tooling to meet the different wheelsets.
  • The cylinder column is mounted with a ram cylinder and the piston inside is driven by oil pressure. The piston displacement is detected by displacement sensor and displayed on the industrial PC.
  • The caliper claws are installed on the resistant column. Manually open or close the claws to loosen or lock the resistant column at the different positions required.
  • The wheel press is provided with 2 support trolleys for supporting the axle. The trolley can be manually moved along the guide rail and the height can be adjusted manually.


Technical Documents:
The following technical documents will be supplied along with the machine when delivery in hard copy and soft copy in English language:

  • Operating and maintenance instruction manual.
  • General arrangement drawing, Foundation drawing.
  • Hydraulic schematic diagram, Electrical schematic diagram.
  • List of Spare parts and Special tool.
  • Product certificate.



Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.


Overview of Hubei Heqiang:
Hubei Heqiang Machinery is the leading manufacturer of wheel set press machines in China. It offers the most advanced wheel set pressing equipment available in the railway and other relevant industry. The wheelset presses are used to mount and dismount all of the elements on the axle (wheel discs, brake discs, gears and bearings). With both single and double cylinder version available for option and capacity range from 200 to 800 tons. Our vast range of machines can satisfy all customer requirements in both maintenance and mass production applications.



Cooperation contact:
If you are interested in our wheelset presses or any assistance required, please feel free to contact us for more information.
