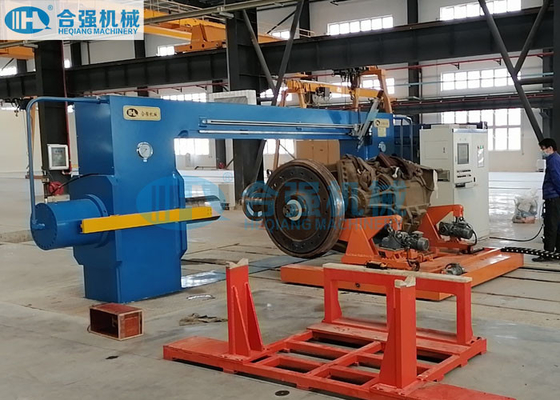

Hydraulic Locomotive Wheelset Press 350 Tons Double Head Cylinders

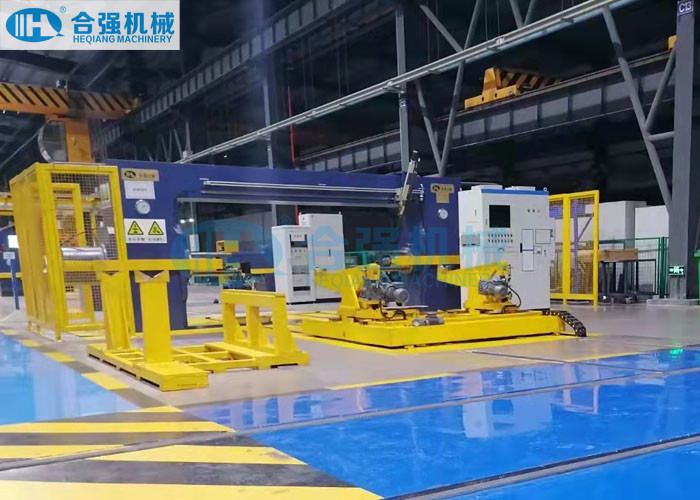

Hydraulic Locomotive Wheelset Press 350 Tons Double Head Cylinders

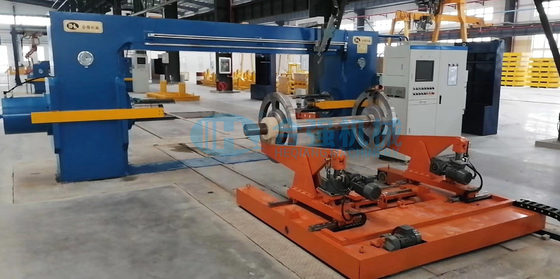

Hydraulic Locomotive Wheelset Press 350 Tons Double Head Cylinders
video play

Large Image :  Hydraulic Locomotive Wheelset Press 350 Tons Double Head Cylinders Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ02-350
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: USD280,000~420,000 per set
Packaging Details: Nude packages + Wooden cases
Delivery Time: 180 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 20 sets per year
Detailed Product Description
Application: Railway Workshop Usage: Mount Railway Wheelsets
Pressing Force: 350T Ram Cylinder: Double Head Cylinders
Type: Fully Automatic Control Mode: CNC Controlled
Power Source: Hydraulic Axle Support Trolley: One Set
Warranty: One Year After-sale Service: Engineer Available For Oversea Service
High Light:

Hydraulic Locomotive Wheelset Press

,

2 Head Cylinders Wheelset Press

,

speed adjustable Wheelset Press

350 Tons Double Head Locomotive Wheel Mount Press Wheelset Press



Hubei Heqiang Machinery is the leading manufacturer of wheel set press machines in China. It offers the most advanced wheel presses available in the railway and other relevant industry. The wheelset presses are used to mount and dismount all of the elements on the axle (wheel discs, brake discs, gears and bearings). With both single and double cylinder version available for option and capacity range from 200 to 800 tons. Our vast range of machines can satisfy all customer requirements in both maintenance and mass production applications.



Application scope:

This Double head Wheelset Mount Press is used for the mounting work of the wheel discs and axles of the locomotive wheelsets. It can generate, record, save and print the pressing curves. It's only required one operator to operate the hydraulic wheel press. A high-pressure oil injection pump can be provided for easy oiling pressing.



Technical parameters of the Hydraulic Wheel Press:

 Maximum pressing force  350 tons
 Ram cylinder  Double head cylinders
 Maximum ram stroke  800 mm
 Rapid approach speed  0~20 mm/s, adjustable
 Pressing speed  0~3 mm/s, adjustable
 Max load of the centring devices  10000 kg
 Wheelset support Trolley  1 set
 Max trolley load  8000 kg
 Maximum hydraulic system pressure  31.5MPa
 Main power supply (3-Ph AC)  380V/50Hz
 Total installed power  Approx. 30 kW
 High-pressure oil injection pump  1set with max pressure 200 MPa
 Pressure sensor accuracy  0.25%FS
Displacement sensor accuracy  0.01 mm
 Inner distance control accuracy   0.5 mm
 Wheel position difference control accuracy   0.5 mm
 Ram positioning accuracy   ±0.1 mm
 Coaxiality of the two ram cylinders   0.5 mm
 Maximum wheelset weight  8000 kg
 Axle length  2000 ~ 2500 mm
 Wheel diameter  Φ1150 ~ Φ1250 mm

(*Above parameters are indicative, and can be modified as percustomer's requirements.)



Machine features of the Horizontal Wheelset Press:

  • The Wheel Mount Press is a horizontal hydraulic wheel press and will be installed in a pit.
  • The Wheel press-fitting Machine is able to mount/dismount both wheels on the same axle without turning the axle and in a sequence first the wheel at one side of the axle then the wheel at the other side.
  • Special patented centring devices at both ends of two ram cylinders for center hole positioning. The centre can insert into the center hole of both ends of the axle for wheelset positioning. During the whole operation process, it can ensure that the axle center line will be completely concentric with the two ram cylinder centerline to make the ram end face fully matched with the axle end face, without damage on axle center hole and preventing axle from upsetting.
  • Double-end cylinder pressing, only need one positioning without reversal of the axle to proceed both side wheels' mounting.
  • Unique invention patented cylindrical ram for wheel mounting, with high pressing accuracy. The wheel mounting requires high accuracy and high pressing force. In order to ensure that the parts blocking the wheel are subjected to the force completely symmetrical, we adopts cylindrical ram for mounting wheel, not the side opening baffle.
  • Overall gantry frame structure, with high strength, good rigidity and less deformation.
  • Electrical support trolley for wheelset pre-assembly and loading/unloading onto/off from the Machine. It will exit from the Machine during the mounting/dismounting operation.
  • A gearbox support is provided to support the gearbox during the whole mounting process.
  • Automatic recording of mounting curve, radial and axial run-out and back pressure test of each mounted component;
  • Siemens S7 PLC and Advantech Industrial computer for operation control.
  • The Wheel Press Machine can track and control the whole process, detect the pressing condition of the wheelset, and analyze and process it through industrial computer. It can export the pressure vs displacement curve and other results onto the screen and printer.
  • The Wheel Assembly press Machine is designed with acoustic-light alarm to ensure the safe and reliable operation.



For more information, please feel free to contact with us by email or Whatsapp,Wechat, we'll reply you in the first time.
