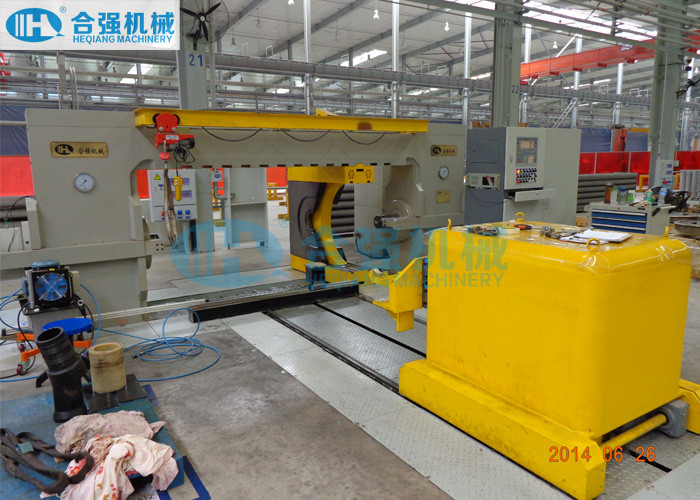

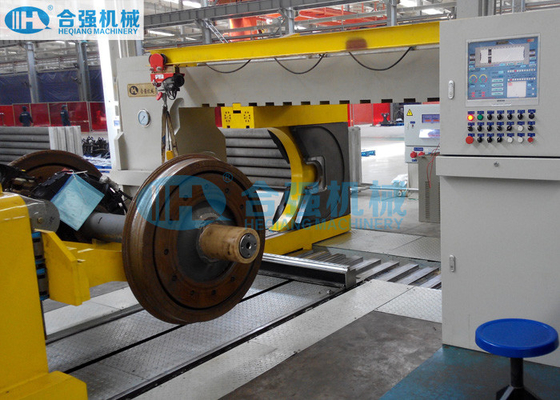

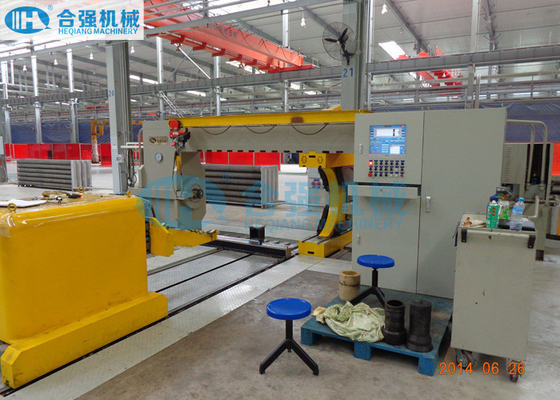

380V CNC Double Cylinder Wheelset Disassembly Wheel Press Machine

380V CNC Double Cylinder Wheelset Disassembly Wheel Press Machine
380V CNC Double Cylinder Wheelset Disassembly Wheel Press Machine 380V CNC Double Cylinder Wheelset Disassembly Wheel Press Machine 380V CNC Double Cylinder Wheelset Disassembly Wheel Press Machine

Large Image :  380V CNC Double Cylinder Wheelset Disassembly Wheel Press Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ03-300
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: USD250000~350000 PER SET
Packaging Details: Nude package + Wooden cases
Delivery Time: 6 months after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 20 sets per year
Detailed Product Description
Application: Railway Repair Workshop Usage: Disassemble Wheelset Wheels
Pressing Force: 300 Tons Ram Cylinder: Double Cylinders
Cnc Or Not: CNC Power Source: Hydraulic
Warranty: 1 Year After-sales Service: Engineer Available To Service Machiney Oversea
High Light:

CNC Wheelset Disassembly Wheel Press Machine

,

380V Wheel Press Machine

,

380V Double Cylinder CNC Wheel Press

Hubei Heqiang Automatic Wheelset Disassembly Press Machine Wheel Dismount Press


Application scope of the Wheelset Press:
This Double cylinder Wheelset Disassembly Press is used to disassemble the wheelset wheels from the axle for the railway passenger cars, metros, intercity cars and etc. It's provided with a high-pressure oil injection pump for easy dismounting. It's only required one operator to operate the press.

Technical parameters of the Hydraulic Wheel Press:

 Max working force of the ram cylinder  3000 kN
 Ram cylinder  2pcs (1 left + 1 right)
 Piston stroke  700mm
 Ram approach speed  0~20 mm/s, adjustable
 Ram pressing speed  0~4 mm/s, adjustable
 Max load of the centring devices  10000 kg
 Wheelset support trolley  1 set, Rotary
 Rotation angle of the trolley  180°
 Max trolley load  3500 kg
 Hydraulic System pressure  ≤ 31.5MPa
 Main power supply  380V/50HZ or as per required
 Installed power  30 kW
 Time required for dismounting one wheel  Less than 5 min
 Pressure sensor accuracy  ≤ 0.25%FS
 Centerline coaxiality of the two ram cylinders  ≤ 0.5 mm
 Maximum Wheelset weight  3000 kg
 Applicable Axle length  2000 ~ 2500 mm
 Applicable Wheel diameter  Φ600 ~ Φ1100 mm
 High-pressure Oil injection pump  1 set, 200 MPa

(*Above parameters are indicative, and can be modified as per customer's actual requirements.)



Machine features of the Wheel Dismount Press:

  • The wheel disassembly press machine is a horizontal hydraulic wheel press and will be installed in a foundation pit.
  • The wheelset press is able to dismount both wheels on the same axle simultanously without turning over the axle.
  • Double-end cylinders for dismounting.
  • Single wheelset positioning to dismount the 2 wheel discs without reversal of the axle.
  • Overall rantry frame structure, Movable resistant column.
  • Provided with overcrane on the top crossbeam. The electric hoist will hook the gearbox end during the dismounting oeration.
  • Movable slider device with replaceable inserts to block the wheels, gears or brake discs for dismounting. It's the original patent in China.
  • Special patented centring devices at both ends of two ram cylinders for center hole positioning. The centre can insert into the center hole of both ends of the axle for wheelset positioning. During the whole operation process, it can ensure that the axle center line will be completely concentric with the two ram cylinder centerline to make the ram end face fully matched with the axle end face, without damage on axle center hole and preventing axle from upsetting.
  • One rotary trolley for wheelset loading and unloading. The trolley will exit the machine during the dismounting process.
  • Siemens S7-300 PLC and AdvanTech Industrial computer to control the operation.
  • Automatic judge the unqualified workpieces and give alarm prompt.
  • Emergency stop button to shut down the machine in case of any emergency.
  • One High pressure oil injection pump is provided for easy dismounting the wheels.



After-sale Service of the Horizontal Wheel Press:

  • Hubei Heqiang can provide the service of installation, commissioning, test, training, maintenance and after-sale service etc.
  • The warranty period will be one year (or as per required) from the date of site acceptance qualified.
  • During the warranty, we will be responsible to repair or replace any damaged component caused due to the machine quality at our cost. The warranty of the replaced parts will be one year from the date of replacement.
  • After the warranty period, we will provide a wide range of technical support and spare parts service.
  • We will provide free upgrade of the control software by sending the upgrade software in CD format.
  • The after-sale service includes all aspects, such as mechanical, hydraulic, electronic control, operation, training, software upgrade, etc.
  • We will keep sufficient stock of the basic spare parts.
