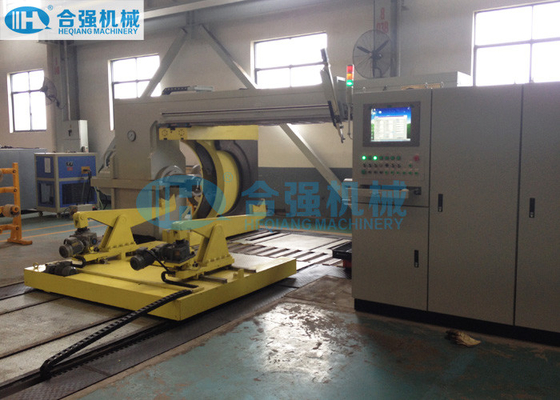

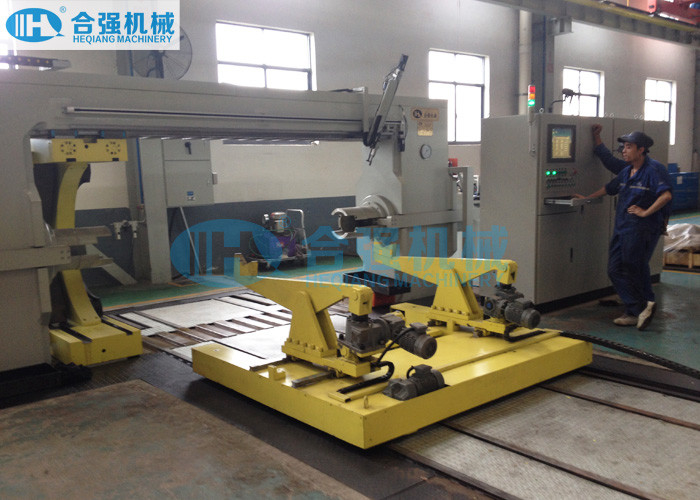

Wheelset Mount And Demount CNC Press With 300T Cylinder Force

Wheelset Mount And Demount CNC Press With 300T Cylinder Force
Wheelset Mount And Demount CNC Press With 300T Cylinder Force
video play

Large Image :  Wheelset Mount And Demount CNC Press With 300T Cylinder Force Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ01-300
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: USD400000~500000 PER SET
Packaging Details: Nude package + Wooden cases
Delivery Time: 180 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 20 sets per year
Detailed Product Description
Application: Railway Depots And Rolling Stock Enterprises Usage: Mount And Dismount Railway Wheelsets
Pressing Force: 300 Tons Ram Cylinder: 2pcs (1 Left + 1 Right)
Support Trolley: One Set Operation Mode: Fully Automatic
Warranty: 12 Months After-sales Service: Engineer Available To Service Machiney Oversea
High Light:

Wheelset Mount And Demount CNC Press

,

300T Cylinder Force CNC Wheel Press

,

300T Cylinder Force CNC Wheelset Press

CNC Wheelset Mount and Demount Press With 300 tons Cylinder Force



Hubei Heqiang Machinery is the leading manufacturer of wheel set press machines in China. It offers the most advanced wheel set pressing equipment available in the railway and other relevant industry. The wheelset presses are used to mount and dismount all of the elements on the axle (wheel discs, brake discs, gears and bearings). With both single and double cylinder version available for option and capacity range from 200 to 800 tons. Our vast range of machines can satisfy all customer requirements in both maintenance and mass production applications.



Application scope of the Wheelset Press:

This Automatic Wheel Press is mainly used for the mounting, dismounting and back pressure testing of wheel discs of the HXD series locomotive wheelsets. It can generate, record, save and print the pressing curve (Pressure vs displacement, pressure vs time). A rotation device is provided with the machine to perform wheel back-to-back, axial run-out and radial run-out measurements after the mounting process has been completed.



Technical parameters of the Hydraulic Wheel Press:

 Max Pressing force  300 tons
 Ram cylinder  Double cylinders (1 left + 1 right)
 Maximum ram stroke  900 mm
 Ram approach speed  0~20 mm/s, adjustable
 Ram pressing speed  0~5 mm/s, adjustable
 Return speed  0~24 mm/s, adjustable
 Max load of the centring devices  10000 kg
 Wheelset support trolley  1 set
 Max trolley load  8000 kg

 Hydraulic system pressure

 Maximum 31.5 MPa
 Main power supply  3 phase, AC, 380V/50HZ
 Total installed power  Approx. 30 kW
 Pressure sensor accuracy   0.25% FS
 Inner distance control accuracy   ±0.2 mm
 Wheel position difference control accuracy   0.2 mm
 Ram positioning accuracy   ±0.04 mm
 Ram re-positioning accuracy   0.025 mm
 Resolution of measuring elements   0.01 mm
 Pressing cycle time for 2 wheels   12 minutes per axle
 Maximum Wheelset weight  8000 kg
 Axle length  2200 ~ 2500 mm
 Wheel diameter  Φ750 ~ Φ1250 mm

(*Above parameters are indicative, and can be modified as per customer's requirements.)



Machine features of the CNC Wheelset Press:

  • The Wheel Mount Press is a horizontal hydraulic wheel press and will be installed in a pit.
  • The Wheel press-fitting Machine is able to mount/dismount both wheels on the same axle without turning the axle and in a sequence first the wheel at one side of the axle then the wheel at the other side.
  • Double-end cylinder pressing. Only need one positioning without reversal of the axle to proceed both wheel mounting/dismounting.
  • The Wheel Assembly Machine is equipped with special patented centring devices at both ends of two ram cylinders for center hole positioning. The centre can insert into the center hole of both ends of the axle for wheelset positioning. During the whole operation process, it can ensure that the axle center line will be completely concentric with the two ram cylinder centerline to make the ram end face fully matched with the axle end face, without damage on axle center hole and preventing axle from upsetting.
  • Unique Invention patented cylindrical ram for wheel mounting, with high pressing accuracy.
  • The Wheel Press-Mounting Machine is equipped with an electrical axle lifting jack for wheelset pre-assembly and loading/unloading onto/off from the Machine. It will exit from the Machine during the mounting/dismounting operation.
  • The wheel press is equipped with a gearbox support to support the gearbox during the whole mounting/dismounting process.
  • The Machine can track and control the whole process, detect the pressing condition of the wheelset, and analyze and process it through industrial computer. It can export the pressure vs displacement curve and other results onto the screen and printer.
  • The Machine is designed with acoustic-light alarm to ensure the safe and reliable operation.
  • Only required one operator to operate the wheel press machine.



Cooperation contact:

If you are interested in our wheel presses and need more information, please feel free to contact with us by email or Whatsapp, we'll give you feedback in the first time.
