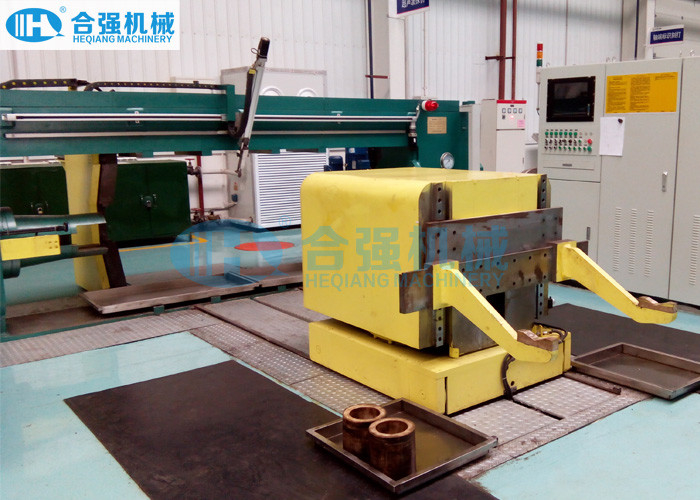

Passenger Car Wheelset Hydraulic Wheel Press With Capacity 3000kN

Passenger Car Wheelset Hydraulic Wheel Press With Capacity 3000kN
Passenger Car Wheelset Hydraulic Wheel Press With Capacity 3000kN
video play

Large Image :  Passenger Car Wheelset Hydraulic Wheel Press With Capacity 3000kN Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ01-350
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: USD400000~520000 PER SET
Packaging Details: Nude package + Wooden cases
Delivery Time: 180 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 20 sets per year
Detailed Product Description
Application: Railway Depots And Workshops Usage: Wheelset Production And Maintenance
Pressing Force: 3500 KN Ram Cylinder: Double Cylinders
Operation Mode: Siemens PLC + Industrial Computer Control: CNC Controlled
Warranty: 12 Months After-sale Service: Engineer Available To Service Machinery Oversea
High Light:

Wheelset Hydraulic Wheel Press

,

3000kN Hydraulic Wheel Press

,

Hydraulic Passenger Car Wheelset Press

Passenger Car Wheelset Press Mounting Machine With Capacity 3000KN





Hubei Heqiang Horizontal Railway Locomotive Wheel Assembly And Disassembly Press, Hydraulic Wheel Press



Hubei Heqiang Machinery is the leading manufacturer of Wheelset and Bearing presses in China. Now it covers more than 80% of the China market on CNC Wheelset Presses. We offer the most advanced wheel set pressing equipment available in the railway and other relevant industry. The wheelset presses are applicable to assemble and disassemble the elements on the axle (wheel discs, brake discs, gears and bearings). With both single and double cylinder version available for option and capacity range from 200 to 800 tons. Our vast range of machines can satisfy all customer requirements in both wheelset maintenance and mass production applications.



Application scope of the Hydraulic Wheel Press:

This double cylinder wheel press is a fully automatic design. It's used to mount and dismount the wheelset wheels and gears  etc. safely and effectively for railway rolling stocks. It can generate, record, save and print the pressing curves. One rotary trolley provided for wheelset loading and unloading.



Technical parameters of the Automatic Wheelset Press:

 Maximu pressing force  3000 KN
 Ram cylinder  2 pcs (1 left + 1 right)
 Cylinder piston stroke  700 mm
 Ram rapid approach speed  0~25 mm/s, adjustable
 Ram pressing speed  0~4 mm/s, adjustable
 Max load of the centring devices  10000 kg
 Wheelset support trolley  1 set
 Max trolley load  3000 kg

 Maximum Hydraulic pressure

 31.5 MPa
 Main power supply (3-ph AC)  380V/50HZ or as per required
 Total installed power  Approx. 30kW
 Pressing cycle time for 2 wheels  ≤ 10 minutes/axle
 Pressure sensor accuracy  0.25% FS
 Displacement sensor accuracy  0.01 mm
 Inner distance control accuracy  ±0.5 mm
 Wheel position difference control accuracy  ±0.3 mm
 Ram positioning accuracy  ≤ ±0.04 mm
 Maximum Wheelset weight  5000 kg
 Maximum axle length  2600 mm
 Maximum wheel diameter  Φ1200 mm

(*Above parameters are indicative, and can be modified as per customer's actual requirements.)



Machine features of the Wheel Press-fitting machine:

  • The wheel mount dismount press is a horizontal hydraulic wheel press and will be installed in a pit.
  • Gantry frame structure. Double-end cylinder pressing.
  • Only need one positioning to proceed 2 wheels' mounting and dismounting without turning over the axle.
  • Special patented centring devices at both ends of two ram cylinders for center hole positioning. The centre can insert into the center hole of both ends of the axle for wheelset positioning. During the whole operation process, it can ensure that the axle center line will be completely concentric with the two ram cylinder centerline to make the ram end face fully matched with the axle end face, without damage on axle center hole and preventing axle from upsetting.
  • Unique Invention patented cylindrical ram for wheel mounting.
  • Movable slider device with replaceable inserts to block the wheels, gears or brake discs for dismounting. It's the original patent in China.
  • One rotary support trolley is provided for wheelset loading and unloading onto/off from the press. It will exit from the press during the operation.
  • Siemens S7-300 PLC and AdvanTech Industrial computer to control the operation.
  • The wheel mount press can track and control the whole process, detect the pressing condition of the wheelset, and analyze and process it through industrial computer. It can export the pressure vs displacement curve and other results onto the screen and printer.
  • Only required one operator to operate the wheel press machine.



For more information of our wheelset mount demount press, please don't hesitate to send us an inquiry email!
