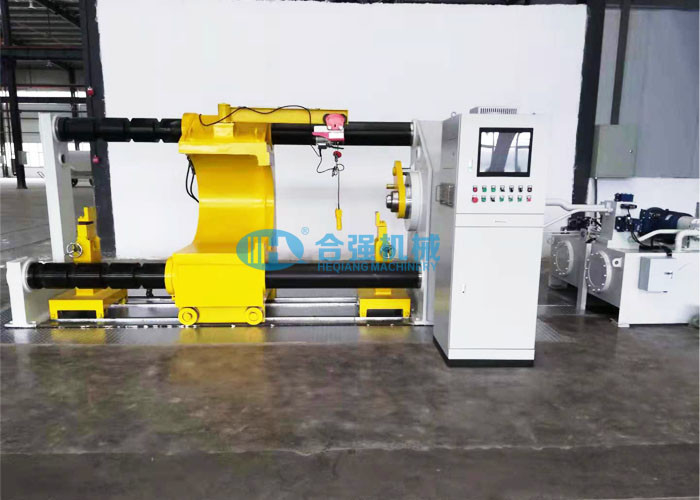

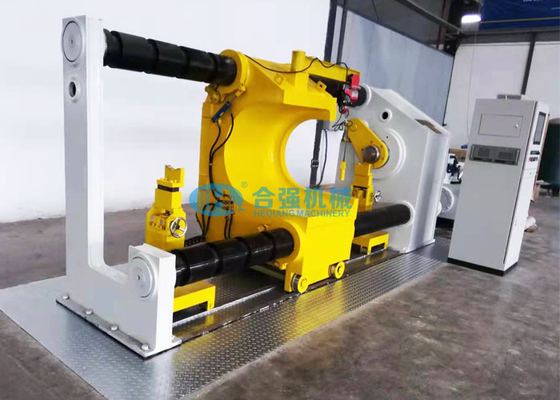

ISO9001 400 Ton Horizontal Railway Hydraulic Wheel Press

400 Tons Horizontal Railway Hydraulic Wheel Mount And Demount Press , Wheel Press Machine with Single cylinder

Application Scope:

This 400t horizontal hydraulic wheel mount and demount press is used to mount and dismount the wheelset with gearbox. It needs reversal of the axle/wheelset during the pressing. The press is equipped with a jib crane to hoist the gearbox during operation. It can generate, record, save and print the pressing curve.

Technical Parameters:

(*Above parameters are for reference. It can be modified as per customer's actual requirements.)

Structure and Features:

• This horizontal hydraulic wheel mount and demount press will be installed in a foundation pit.
• The press is able to mount and dismount the wheelset with gearbox, and can print the pressing curve.
• The press is equipped with a jib crane to hoist the gearbox during operation.
• The wheel press machine is mainly composed of cylinder column, resistant column, rear column, support rods, chassis, caliper mechanism, support brackets, hydraulic system, eletrical control system.
• The cylinder column and resistant column are combined together via two support rods to form a force frame. The rear clumn is only to supprt these two support rods.
• The cylinder column and rear column are both welded by cast steel and steel plate, and the chassis is welded by steel plate and section steel. All are carried out annealing treatment.
• The U-type opening of the resistant column and rear column is side opening for the convenience of wheelset mounting and dismounting. Only to replace the tooling to meet the requirements of different workpiece.
• The cylinder column is provided with a ram cylinder and the piston inside is driven by oil pressure. the piston displacement is detected by displacement sensor and displayed n the industrial computer screen. The piston rod and tooling on the resistant column cooperate with each other to achieve the mounting and dismounting of the workpiece.
• The caliper mechanism is installed on the resistant column. It is used to position the resistant column at the different positions required.
• The wheel press is provided with 2 sets of support bracket for supporting the axle/wheelset. The bracket can move along the guide tail and the height can be adjusted manually.
• Adopt Siemens PLC to control the operation.
• User-friendly human machine interface.

Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.
