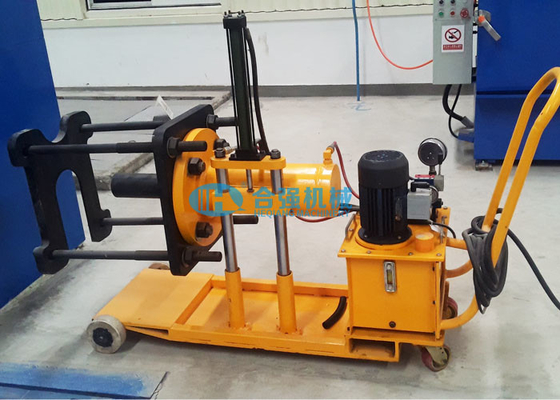

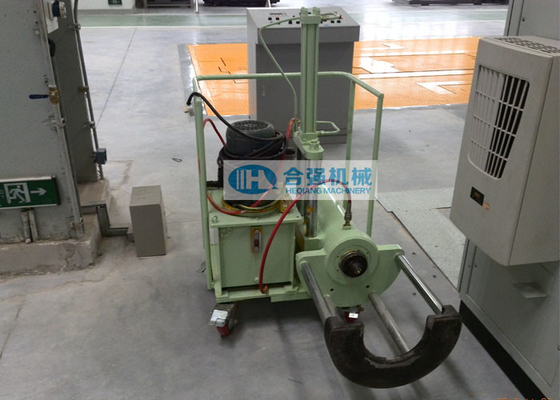

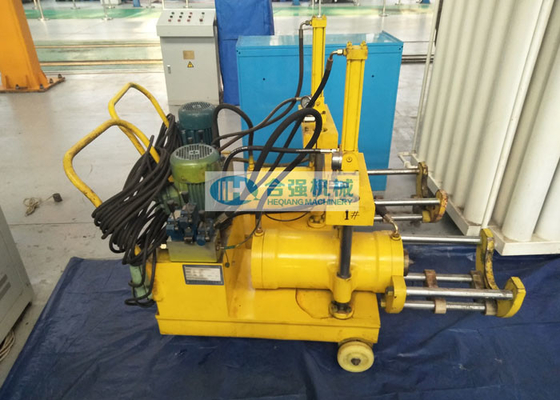

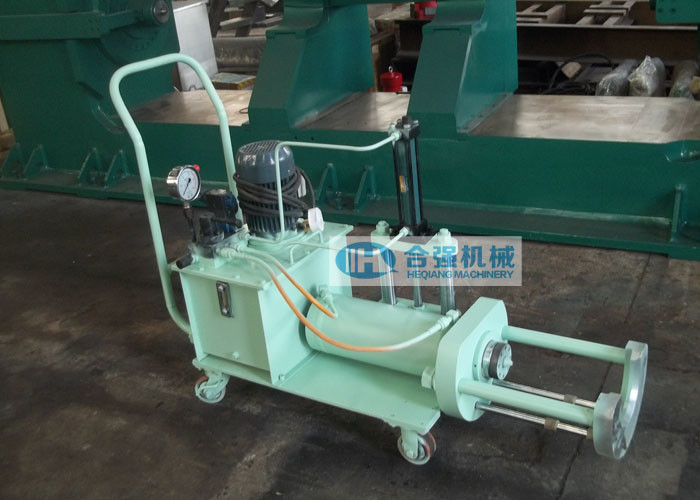

60 Ton Mobile Bearing Dismounting Press , Railway Bearing Puller

60 Ton Mobile Bearing Dismounting Press , Railway Bearing Puller
60 Ton Mobile Bearing Dismounting Press , Railway Bearing Puller 60 Ton Mobile Bearing Dismounting Press , Railway Bearing Puller 60 Ton Mobile Bearing Dismounting Press , Railway Bearing Puller 60 Ton Mobile Bearing Dismounting Press , Railway Bearing Puller

Large Image :  60 Ton Mobile Bearing Dismounting Press , Railway Bearing Puller Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ36
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 90 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 200 sets per year
Detailed Product Description
Product Name: Wheel Bearing Press Machine Condition: New
Application: Railway Depot Workshop Function: Dismount Wheelset Bearing
Machine Type: Mobile Max Dismounting Force: 60 Tons
Warranty: 1 Year Service: OEM/ODM Customized Services Available
High Light:

60 Ton Mobile Bearing Dismounting Press

,

OEM Mobile Bearing Dismounting Press

,

Mobile Railway Bearing Puller

60t Mobile Bearing Dismounting Press , Railway Bearing Puller


Application scope:

This Mobile bearing dismounting press machine is used to dismount the rolling bearings off from the axle for various types of rolling stock wheelset. It's applicable for the railway applications, also for applications of the mining company and steel company.



Technical parameters:

 Machine type  Mobile
 Maximum dismounting force  60 tons
 Maximum stroke of the cylinder  Not less than 300mm
 Applicable wheel diameter  900 ~ 1260 mm or as per required
 Axle journal diameter  130 mm, 150 mm
 Outer diameter of the bearing to be dismounted   215~240 mm
 Noise level during working  Not more than 75dB
 Ambient temperature  -5℃~45℃
 Relative humidity  Not more than 95%
 Power supply  380V/50Hz, 3 phase, AC

(*Above parameters are indicative, and can be modified as per customer's requirements.)


Machine features:

  • The bearing press machine is mobile type, easy to move and with light weight.
  • The bearing dismount press is able to dismount the bearing from the axle for various applications.
  • It’s easy to operate, easy to maintain and repair. With sufficient rigidity and good static and dynamic performance. With advanced and reliable electrical control system and reliable safety protection device.
  • The mobile bearing dismount press machine is mainly composed of lifting mechanism, main cylinder, mobile trolley, dismounting device, hydraulic system and etc.
  • The dismounting tooling is fixed to the front end of the cylinder piston rod by screws. It only need to replace with the corresponding tooling to tdismount different types of bearing.
  • During dismounting, the center of the dismounting mechanism and the axle center are aligned, and the dismounting force is applied on the end face of the rear bumper and uniform. The bearing and axle will not be damaged and the ear bumper will not be deformed.
  • The lifting platform is hydraulically driven, with stable lifting and accurate positioning. The dismounting position can be adjusted arbitrarily within the height range as required.
  • The hydraulic system is stable and rel;iable, and the oil cylinder will not drop suddenly under special circumstances such as sudden power failure.
  • Metal components of the equipment and instruments are rustproof and painted except machining surface and electroplating surface.
  • In order to prevent the press from damage caused by accidents, the press is equipped with safety protection interlocking device, and short circuit, open circuit and leakage protection devices.



Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.



Cooperation contact:
If you are interested in our products or any assistance required, please feel free to contact us for more information.
