Railway Horizontal Hydraulic Wheel Press Machine With Double Cylinder

Railway Horizontal Hydraulic Wheel set Press Machine With Double cylinder Pressing force 200-500 Tons

Hubei Heqiang Machinery is the leading manufacturer of wheel set press machines in China. It offers the most advanced wheel set pressing equipment available in the railway and other relevant industry. The wheelset presses are used to mount and dismount all of the elements on the axle (wheel discs, brake discs, gears and bearings). With both single and double cylinder version available for option and capacity range from 200 to 800 tons. Our vast range of machines can satisfy all customer requirements in both maintenance and mass production applications.

Application scope:

This Horizontal hydraulic wheel set press Machine is used for the mounting (colding pressing and oiling pressing) and dismounting of the railway locomotive wheelsets. It can generate, record, save and print the pressing curve (Pressure vs displacement, pressure vs time) in the required format. Only required one operator to operate the wheel press machine. It's fully automatic and CNC controlled.

Technical parameters:

(*Above parameters are indicative, and can be modified as per customer's requirements.)

Machine features:

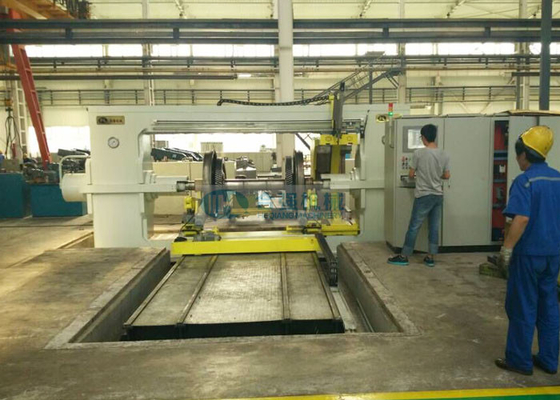

• The Machine is a horizontal hydraulic wheel press and will be installed in a pit. (The model without pit is also available.)
• The Machine is able to mount/dismount both wheels on the same axle without turning the axle and in a sequence first the wheel at one side of the axle then the wheel at the other side.
• Gantry frame structure, with high strength, good rigidity and less deformation.
• Double-end cylinder pressing. Only need one positioning without reversal of the axle to proceed both sides’ wheel mounting and dismounting.
• Special patented centring devices at both ends of two ram cylinders for center hole positioning. The centre can insert into the center hole of both ends of the axle for wheelset positioning. During the whole operation process, it can ensure that the axle center line will be completely concentric with the two ram cylinder centerline to make the ram end face fully matched with the axle end face, without damage on axle center hole and preventing axle from upsetting.
• Unique Invention patented cylindrical ram for wheel mounting, with high pressing accuracy. The wheel mounting requires high accuracy and high pressing force. In order to ensure that the parts blocking the wheel are subjected to the force completely symmetrical, we adopts cylindrical ram for mounting wheel, not the side opening baffle.

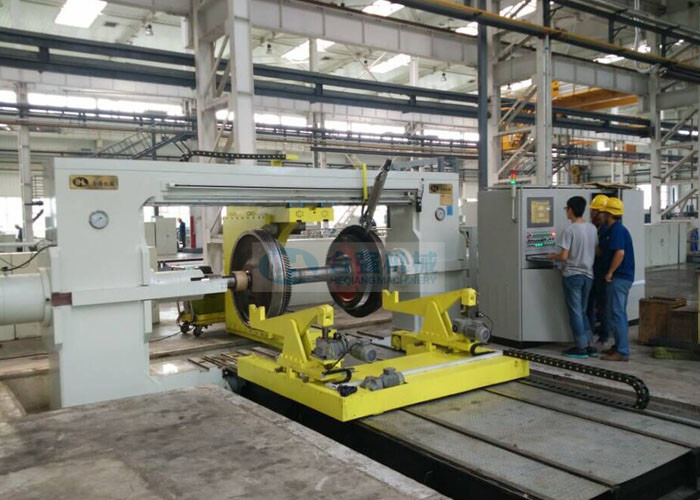

• An electrical support trolley for wheelset pre-assembly and loading/unloading onto/off from the Machine. It will exit from the Machine during the mounting/dismounting operation.
• The Machine can track and control the whole process, detect the pressing condition of the
• wheelset, and analyze and process it through industrial computer. It can export the pressure vs displacement curve and other results onto the screen and printer.
• The Machine is designed with acoustic-light alarm to ensure the safe and reliable operation.
