Product Details:
Payment & Shipping Terms:
|
| Product Name: | Plate Straightening Machine | Usage: | Metal Sheet Plate Straightening |
|---|---|---|---|
| Application: | Hot Straightening Of Ti, Nb, Ta, Zr And Alu Alloy Plates | Plate Thickness: | 3~8mm |
| Plate Width: | 800mm Maximum | Plate Yield Strength: | Maximum 690MPa |
| Straighteing Roller: | 13pcs (Upper 6pcs, Lower 7pcs) | Hot Straightening Temperature: | Not More Than 800℃ |
| High Light: | 690MPa Plate Straightening Machine,13 Roller Plate Straightening Machine,800mm metal sheet straightener |
||

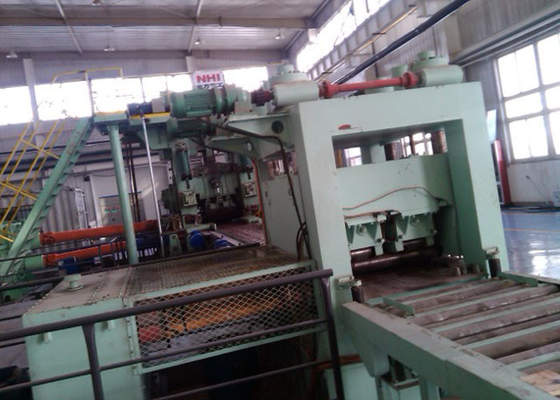

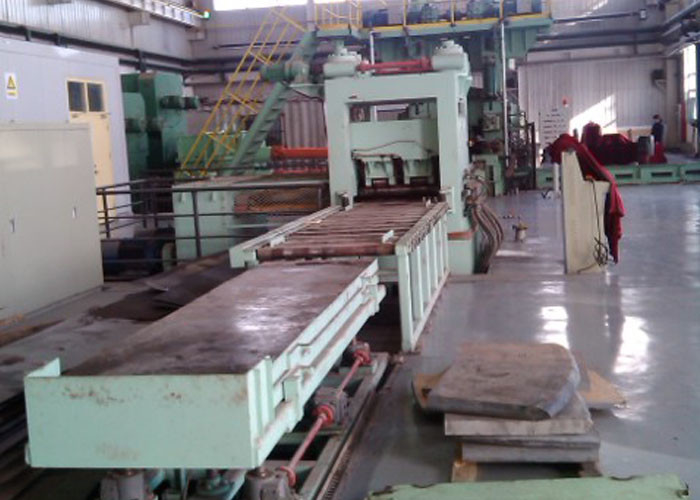

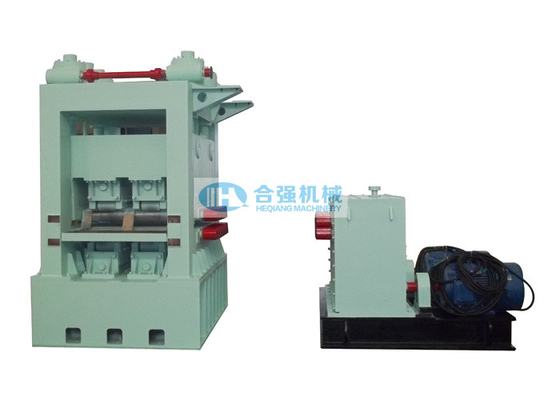

13 Roller 690MPa Metal Sheet Plate Hot Straightening Machine Leveling Machine
Application scope:
This plate straightening leveling machine is applicable for the leveling (hot straightening) work of the Ti, Nb, Ta, Zr and alu alloy plates rolled out from the hot rolling. Leveling temperature not more than 800℃.
This plate straightening machine is used together with the hot rolling mill in a assembly line.
Technical Parameters:
| Machine type | 13-roller plate Hot straightening machine |
| Model No. | HQW43-8x800 |
| Plates to be leveled | Ti, Nb, Ta, Zr and alu alloy plates |
| Maximum plate thickness | 8 mm |
| Minimum plate thickness | 3 mm |
| Maximum plate width | 800 mm |
| Plate yield limit | 690 MPa |
| Plate Leveling speed | 0~10 m/min |
| Work roll quantity | 13 pcs |
| Work roll layout | Upper with 6 rolls and Lower with 7 rolls |
| Roll spacing | 140 mm |
| Work roll diameter | 130 mm |
| Support roll quantity | 2 columns (total 30 rolls) |
| Downpress speed | approx.20 mm/min |
| Leveling temperature | Not more than 800℃ |
| Leveling accuracy | 1 mm/m |
*Above parameters are indicative and can be modified as per customers's actual requirements.)
