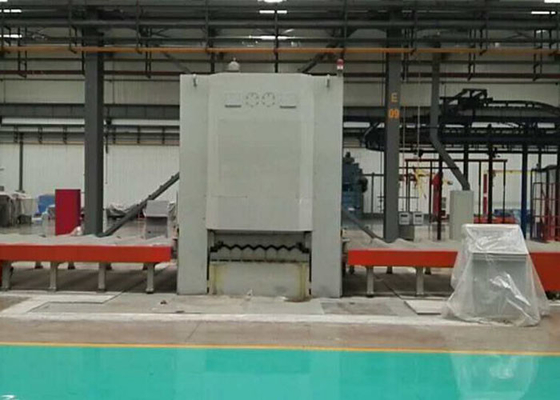

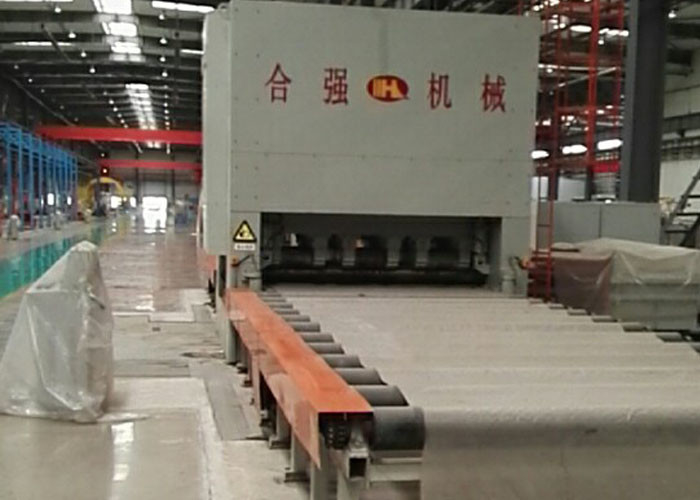

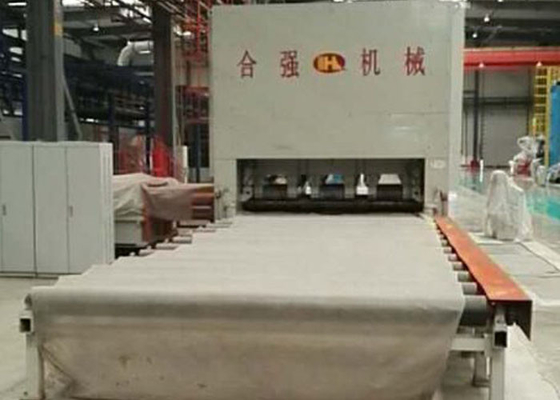

13 Roller 345MPa 2500mm Plate Straightening Machine

13 Roller 345MPa 2500mm Plate Straightening Machine
13 Roller 345MPa 2500mm Plate Straightening Machine 13 Roller 345MPa 2500mm Plate Straightening Machine 13 Roller 345MPa 2500mm Plate Straightening Machine

Large Image :  13 Roller 345MPa 2500mm Plate Straightening Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQW43-16x2500.13R
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 120 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 20 sets per year
Detailed Product Description
Product Name: Plate Straightening Machine Usage: Metal Sheet Plate Straightening
Application: Multi Industrial Applications Plate Thickness: 3~16mm
Plate Width: 2500mm Plate Yield Strength: 345MPa
Work Roll Qty: 13pcs Work Roll Layout: Upper 6pcs, Lower 7pcs
High Light:

345MPa Plate Straightening Machine

,

2500mm Plate Straightening Machine

,

13 Roller plate leveller

13 Roller 345MPa 2500mm Width Plate Straightening Machine NC Drive



Application scope:

This plate straightening machine is applicable for cool leveling of steel plates, stainless steel plates, alu alloy plates and high-strength plates etc.



Technical Parameters:

Machine type 13-roller plate straightening machine
Model No. HQW43-16x2500.13R
Plate thickness 3~16 mm
Maximum plate width 2500 mm
Plate yield limit 345 MPa
Plate Leveling speed 3~8 m/min adjusable
Work roll quantity 13 pcs
Work roll layout Upper with 6 rolls and Lower with 7 rolls
Work roll diameter 180 mm
Roll spacing 200 mm
Support roll quantity 2 columns (upper 14 rolls, lower 16 rolls)
Downpress speed approx.30 mm/min
Leveling accuracy ~1 m/m2
Main motor power Approx.55 kW

*Above parameters are indicative and can be modified as per customers's actual requirements.)



Machine Features:

  • The machine is a mechanical type. It's consisted of machine frame,movable crossbeam, lower cross beam, mani transmission evice, work roll assembly, support roll assembly, downpress mechanism, balance device, guide rolls and electrical control system etc.
  • Reasonable structure, high stability, reliability and durability. Easy operation and convenient for maintenance.
  • The sheets to be levelled can feed from both sides, and leveled repeatly.
  • It's suitable for the leveling of medium plate, high-precision and high strength plate.
  • The work rolls and support rolls are all carried out surface hardening treatment and flaw detection.
    All the roll bearings are self-aligning roller bearings.
  • Mobile crossbeam, working roller and side guide rollers can parallel lift simultaneously; the guide rollers also can parallel lift separately.
  • Digital display, PLC control. Visual input, edit, modify and store process parameters.
  • Siemens PLC and touch screen, Balluff Displacement transducer.



Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.



Spare parts:
To use original spare parts and consumables can optimize machine productivity. We can guarantee that there are enough spare parts and guarantee a preferential price and fundamentally to control the quality of the repair.
It is our commitment to fix all problems as quickly as possible after they are brought to our attention. If you have any questions about our support policies please contact us.
