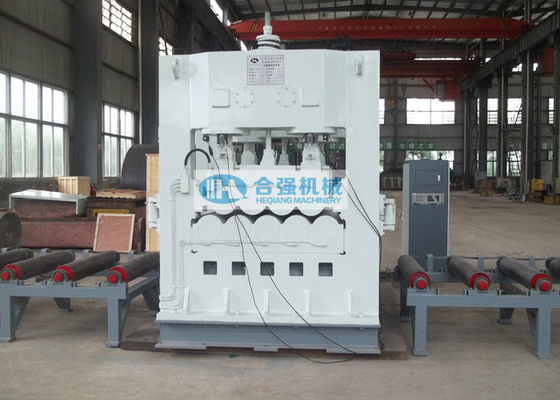

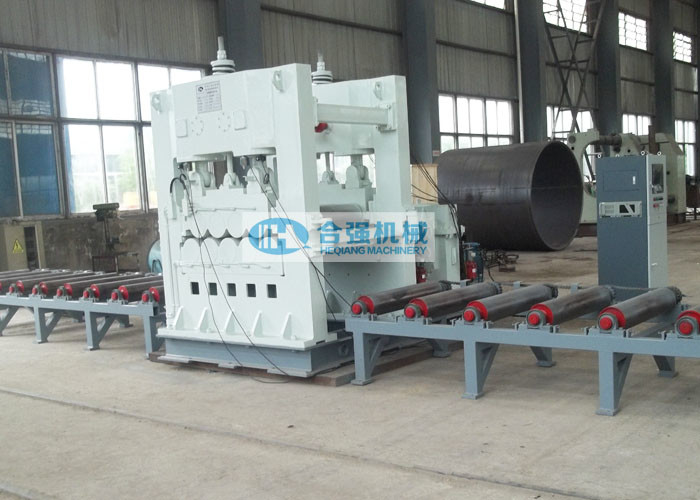

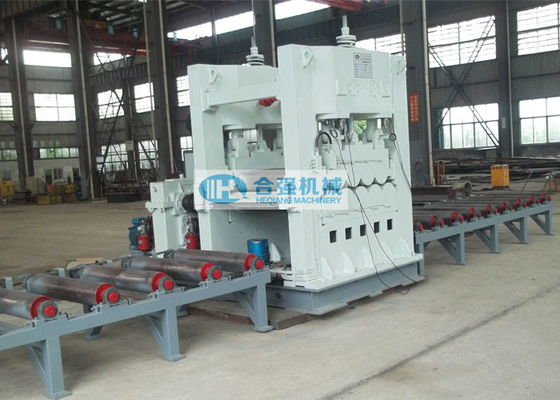

W43 9 Roller Metal Sheet Plate Levelling Machine

5~20mm Thick 1500~3000mm Width 9 Roller Plate Straightening Machine


Application scope:

This plate straightening machine is applicable for the leveling work of the deformed or bended plates.

Machine Features:

• The machine is a mechanical type. It's consisted of machine frame,movable crossbeam, lower cross beam, mani transmission evice, work roll assembly, support roll assembly, downpress mechanism, balance device, guide rolls and electrical control system etc.
• 4 column frame type structure, with high strength and rigidity;
• The work rolls and support rolls are all carried out surface hardening treatment and flaw detection
• Mobile crossbeam, work roller and side guide rollers can parallel lift simultaneously; the guide rollers also can parallel lift separately.
• The sheets to be levelled can feed from both sides, and leveled repeatly；
• It's suitable for the leveling of medium plate, high-precision and high strength plate.
• Digital display, PLC control. Visual input, edit, modify and store process parameters.

Other Model for Optional:

(*Above parameters are indicative and can be modified as per customers's actual requirements.)
