15-TON ELECTRIC LIFTING JACK lifting columns for passenger car lifting

Name: 15-TON ELECTRIC LIFTING JACK lifting columns for passenger car lifting
Brand: Heqiang Machinery
SKU: HQ86-15
Rating: 4.7 (109 reviews)

Large Image : 15-TON ELECTRIC LIFTING JACK lifting columns for passenger car lifting Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Heqiang Machinery
Certification:	ISO9001
Model Number:	HQ86-15

Payment & Shipping Terms:

Minimum Order Quantity:	4 pcs or One set
Price:	Negotiable
Packaging Details:	Standard export package
Delivery Time:	120 days after advance payment
Payment Terms:	T/T, L/C
Supply Ability:	300pcs per year

Contact Now

Detailed Product Description

Product Name:	Electric Lifting Jack	Application:	Railway Depot And Workshop
Usage:	Lifting Railway Vehicles	Use Method:	4 Units As A Set
Lifting Capacity:	15 Tons Per Jack	Lifting Drive:	Screw Drive
Control:	Electric	Power Supply:	380V/50Hz, 3 Phase AC
Highlight:	20t Railway Lifting Jacks , 2500mm Railway Lifting Jacks , 180mm/min mobile lifting jacks

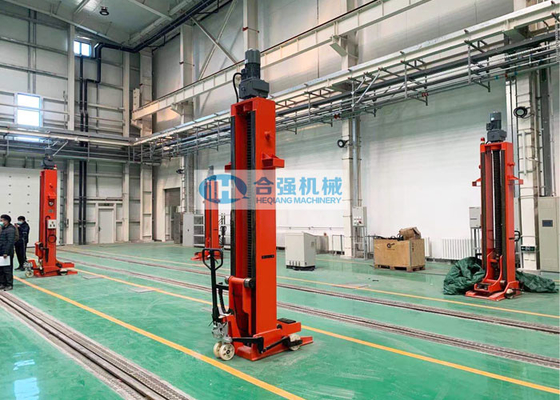

15-Tons Mobile Electric Lifting Jacks Lifting Columns For Passenger Car Lifting

Application scope:
The Mobile Lifting Jacks are used to lift the railway vehicles to a suitable height for assembly, inspection and maintenance, and lower the vehicles after work completed. The lifting jacks are operated synchronously as a groupe of 4 units.

Techical Parameters:

Lifting capacity of each jack	15 tons
Lifting speed	Approx.240mm/min
Minimum lifting height	800 mm
Maximum lifitng height	2500 mm
Bracket stroke	1700 mm
Motor power of each jack	4 kW
Synchronization accuracy	6 mm
Power supply	380V / 50Hz, 3 phase AC
Noise level during working	Not more than 85 dB
Service life	15 years

(* Above parameters are indicative, and can be modified as per customer's actual requirements.)

Main Features:

The mobile lifting jack is mainly composed of jack frame, lifting walking trolley, Lifting device, Electrical control system, safety protection system, and etc.
The jacks are easy mobility. Lifting eyes are provided for each lifting jack.
The jack frame is welded by steel plate and carried out stress relief and annealing heat treatment after welding. The structure is reasonable, firm and reliable.
The lifting jack is provided with limit switch for the working nut. When the working nut is worn to the set position, a fault message will display on the screen and automatically cut off electric to ensure the safety.
The lifting jack is provided with safety protection nut. When the working nut is seriously worn, and the working nut limit switch or electrical system also fails at the same time, the safety nut will bear the weight of the car body without causing danger.
The synchronization of the lifting spindle is monitored and corrected by the motor wiring circuit, and controlled by the measuring device.
The operation of the lifting jack is interlocked with the jack body to ensure the safety, and the incorrect operation is not allowed.
All control stations are designed with solid shells and proper support to form a rigid structure. The outer corners and edges are smooth and round. Inner edges are also smooth.
The main control console is provided with fault display panel. In case a fault occurs, the buzzer on the panel sounds and the lamp should flash to indicate the location and nature of the fault. Press the confirm button, the buzzer will stop and the flash will stop. When the fault is corrected, the display should be restored to normal, press the reset button.
The spindle unit is provided with a movement limit switch to prevent the excessive lifting/lowering of any lifting element. Up and down position limits will be set and adjustable.
All control stations are provided with emergency stop button.
