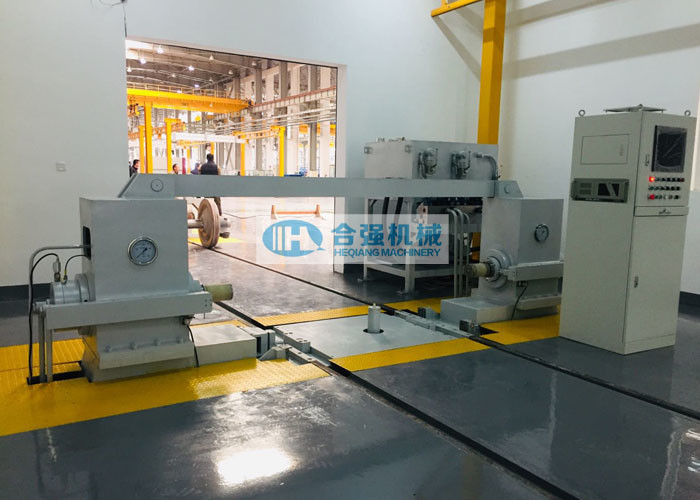

600kN Double Cylinder Wheel Bearing Press Machine

600kN Double Cylinder Wheel Bearing Press Machine
600kN Double Cylinder Wheel Bearing Press Machine
video play

Large Image :  600kN Double Cylinder Wheel Bearing Press Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ32
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 120 days after advance payment & design approval
Payment Terms: T/T, L/C
Supply Ability: 50 sets per year
Detailed Product Description
Product Name: Wheel Bearing Press Machine Application: Railway Maintenance Workshop
Function: Assemble Wheelset Bearings Operation Mode: Automatic
Ram Cylinder: 2 Pcs Operator Required: One Operator
Warranty: One Year After-sales Service: Engineer Available To Service Machiney Oversea
High Light:

600kN Wheel Bearing Press Machine

,

30kW Wheel Bearing Press Machine

,

4mm/s Rolling Bearing Mounting Press

Automatic Wheel Bearing Press Machine , Railway Rolling Bearing Mounting Press

Application scope:
This Railway Wheel Bearing Press Machine is applicable for the assembly of the rolling bearings and axles. It can mount either single end bearing separately, also can mount both ends bearings simultaneously. It's suitable for all railway vehicles (passenger cars, wagons, metros, EMU etc.). It can generate, record, save and print the pressing curve (
Displacement-pressure-time). It's only required one operator to operate the press.



Technical parameters:

 Maximum Pressing force  600 kN
 Ram cylinder  2 pcs (1 left + 1 right)
 Maximum cylinder stroke  Not less than 460 mm
 Pressing speed   0 ~ 6 mm/s (adjustable)
 Resolution of pressing force display   0.1 kN
 Resolution of displacement sensor  0.01 mm
 Concentricity of left & right cylinder centerline  Not more than 0.4 mm
 Maximum hydraulic system pressure  20 MPa
 Installed power  Not more than 20kW
 Applicable axle length  1700 ~ 2100 mm
 Applicable wheel diameter  770 ~ 840 mm
 Inner diameter of the bearing to be pressed  130 mm
 Outer diameter of the bearing to be pressed  220 mm

(*Above parameters are indicative, and can be modified as percustomer's requirements.)


Machine features:

  • Gantry frame structure design, with sufficient strength and rigidity.
  • Double-head ram cylinders and patented centre devices for pressing.
  • Pass-through arrangement. The wheelset can be pushed out automatically after the mounting completed.
  • Automatic component positioning.
  • The press can mount both end bearings with a single positioning.
  • Automatic mounting separately of single end bearing.
  • Automatic mounting simultaneously of both end bearings.
  • Only need to replace the tooling for mounting the different types of bearing.
  • It can generate, record, save and print the pressing curve of displacement-pressure-time.
  • Siemens PLC and AdvanTech industrial computer to control the operation.
  • User friendly human-machine interface.
  • Unique hydraulic servo system.
  • Applicable to the wheelset with standard, narrow, meter and board gauge.



Technical Documents:
The following technical documents will be supplied along with the machine when delivery in 3 hard copy and 1 soft copy in English language:

  • Operating and maintenance instruction manual;
  • General arrangement drawing, Foundation drawing;
  • Hydraulic schematic diagram, Electrical schematic diagram;
  • Spare part list, Special tool list;
  • Product certificate/Factory Acceptance Certificate, etc.
