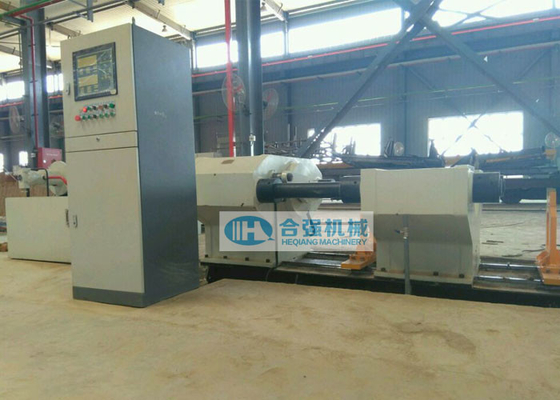

250 Ton Horizontal Wheel Press

Name: 250 Ton Horizontal Wheel Press
Brand: Heqiang Machinery
SKU: HQ11P-250
Rating: 4.8 (131 reviews)

Large Image : 250 Ton Horizontal Wheel Press Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Heqiang Machinery
Certification:	ISO9001
Model Number:	HQ11P-250

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export package
Delivery Time:	150 days after advance payment & design finalization
Payment Terms:	T/T, L/C
Supply Ability:	30 sets per year

Contact Now

Detailed Product Description

Product Name:	Wheel Demount Press Machine	Application:	Railway Depots
Function:	Dismount Wheelsets	Ram Cylinder:	Single-head Cylinder
Pressing Force:	250 Tons	Operation Mode:	Automatic & Manual
Installation Service:	Engineers Available For Oversea Installation & Commissioning	After-service:	On-line Service Available
High Light:	250T Horizontal Wheel Press , ODM Horizontal Wheel Press , 5mm/s Wheelset Disassembly Machine

Railway Single Cylinder 250 Tons Horizontal Wheel Dismount Press Machine, Wheelset Disassembly Machine

Application Scope:
The horizontal wheel dismount press machine is applicable for the wheelset dismounting of railway passenger cars, wagons and locomotives. It's equipped with pressing curve record and print function. Only one operator is required to complete all the operation.

Main Technical Parameters:

Maximum norminal pressure	250 tons
Ram cylinder	1 set
Ram stroke	400 mm
Ram pressing speed	0~5mm/s
Maximum fast forward and retreat speed	0~30 mm/s
Wheel diameter	Φ600 ~ Φ1050 mm
Axle length	1600 ~ 1900 mm
Maximum wheelset weight	1500 kg
Track gauge	1000 mm, available in other size
Working pressure of hydraulic system	31.5 MPa
Noise level during working	75 dB
Main power supply	400V/50HZ, AC 3 phase
Ambient temperature	-5℃～40℃
Relative humidity	Not more than 95%

(*The detail parameters can be modified as per customer's actual requirements.)

Main Structure & Features:
The wheel desmount press is mainly composed of machine frame, ram cylinder, hydraulic system and operation console.

Modular frame structure, carried out overall annealing and stress relieving, with sufficient rigidity and strength to meet the continous working requirements;
Machine frame: It's composed of chassis, cylinder column, movable column and support rods. The machine frame adopts rigid design and won't be deformed during the dismounting process.
Special design of Centering mechanism and movable column, ensuring the axle will not be damaged during dismounting.
Ram cylinder: The ram cylinder is installed in the cylinder column. It's the power mechanism to perform the wheelset dismounting;
Movable column: It is driven by the reducer motor to move on the chassis.
Bracket trolley: With 2 sets of movable bracket trolley for wheelset support, located at both side of the movable column;
Siemens PLC and AdvanTech Industrial computer to control the operation.
With functions of pressing curve generate, record, storage and print.

Technical Documents:
The following technical documents will be supplied along with the machine when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

Operating and maintenance instruction manual;
General arrangement drawing, Hydraulic schematic diagram, Electrical schematic diagram;
Foundation drawing;
Spare part list, Special tool list;
Product certificate/Factory Acceptance Certificate, packing list, etc.

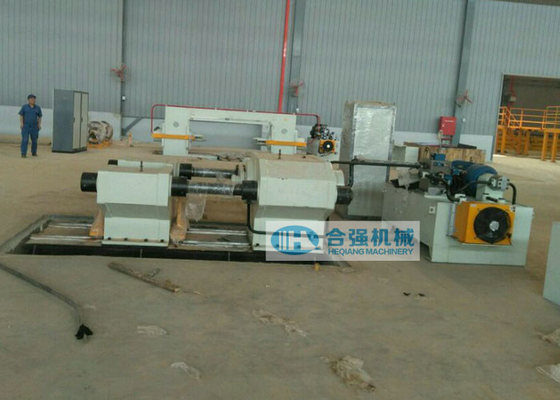

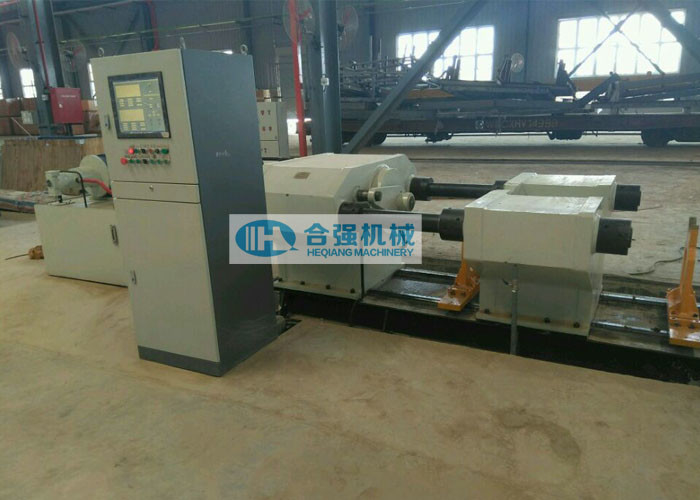

Application example:
