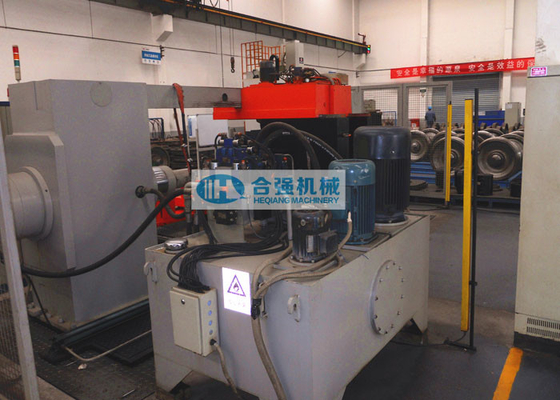

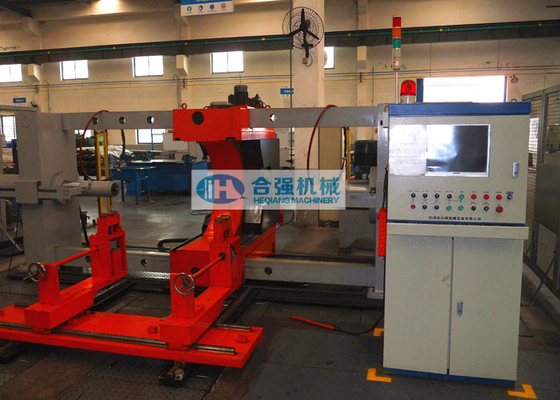

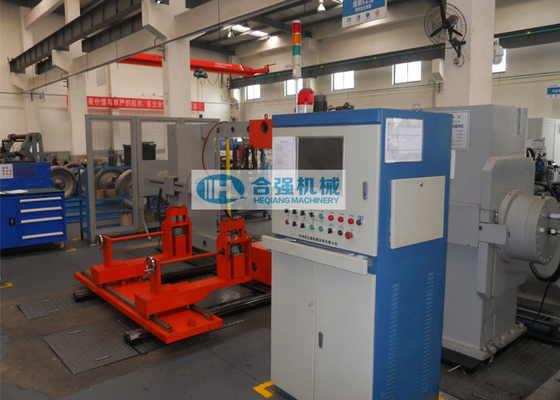

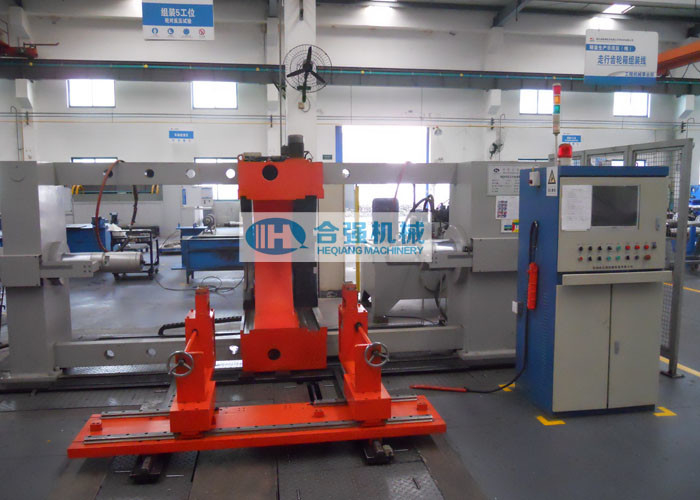

Railway Wheel Press Machine , Wheel Mounting And Dismounting Press Machine

Railway Wheel Press Machine , Wheel Mounting And Dismounting Press Machine
Railway Wheel Press Machine , Wheel Mounting And Dismounting Press Machine
video play

Large Image :  Railway Wheel Press Machine , Wheel Mounting And Dismounting Press Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ07
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 150 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 40 sets per year
Detailed Product Description
Product Name: Wheel Press Machine Application: Railway Depots, Rolling Stock Enterprices
Usage: Wheelset Assembly And Disassembly Condition: New
Cnc Or Not: CNC Ram Cylinder: One Main Cylinder + One Auxiliary Cylinder
Warranty: One Year After-sales Service Provided: Engineers Available To Service Machinery Overseas,Free Spare Parts,Online Support
High Light:

300T Wheel Press Machine

,

3mm/S Wheel Press Machine

,

Wheel Mounting And Dismounting Press Machine

Railway 300~500 Tons Horizontal Wheel Mounting And Dismounting Press Machine Wheel Press-Mounting Machine

Application Scope:
The horizontal wheel mounting and dismounting press machine is applicable for the mounting and dismounting work of wheelsets of different types of railway rolling stocks. It only requires one operator to run the press.


Technical parameters:

 Maximum pressing force  300 ~ 500 tons
 Ram cylinder Qty  1pc main cylinder & 1pc auxiliary cylinder
 Ram cylinder stroke  Not less than 700 mm
 Rapid approach speed  0~20 mm/s, adjustable
 Pressing speed  0~3 mm/s, adjustable
 Retreat speed  0~24 mm/s, adjustable
 Maximum centre load  8000 kg
 Support trolley qty  1 set
 Maximum load of the trolley  4000 kg
 Working pressure of Hydraulic system  31.5 MPa
 Power supply  3 phase, AC, 380V/50Hz
 Noise level during working  Not more than 75 dB
 Inner distance control accuracy  Manual measurement
 Wheel position difference control accuracy  Manual measurement
 Ram positioning accuracy  Less than 0.04 mm
 Error of measuring accuracy  Not more than 0.01 mm
 Concentricity of the two cylinders' centerline  Not more than 0.3 mm
 Wheelset weight  Not more than 4000 kg
 Applicable axle length  1700 ~ 2600 mm
 Applicable wheel diameter  Φ750 ~ 1250 mm
 Applicable wheel seat diameter  Φ150 ~ 270 mm
 Applicable wheel hub diameter  Φ180 ~ 400 mm

(*The detail parameters can be modified as per customer's actual requirements.)


Main Features:

  • Modular structure, Movable resistant column, carried out overall annealing and stress relieving;
  • With one main ram cylinder and one auxiliary cylinder for wheelset mounting and dismounting;
  • Special patented anti-upsetting center mechniasm for wheelset positioning;
  • With movable trolley for wheelset support;
  • The operating system is easy to learn, achieving the operation convenience and visualization;
  • The software of the operating system has multiple functions, including automatic record, intelligent judgement, print, storage and historical curve inquiry for force vs displacement curve;
  • Unique hydraulic servo system, with adjustable pressing speed;
  • It needs to turn the axle to complete the pressing of both side wheels.


Technical Documents:
The following technical documents will be supplied along with the machine when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

  • Operating and maintenance instruction manual;
  • General arrangement drawing, Hydraulic schematic diagram, Electrical schematic diagram;
  • Foundation drawing;
  • Spare part list, Special tool list;
  • Product certificate/Factory Acceptance Certificate, packing list, etc.


Application example:

  • CRRC Changzhou Ruitai Engineering Machinery Co.,Ltd.;
  • Beijing Nankou Railway Transportation Machinery Co.,Ltd;
  • etc.
