450 Ton Single Cylinder Wheel Press Machine

450 Tons Single Cylinder Wheel Press Machine for Wheel set Mounting And Dismounting

Application Scope:

This single cylinder Wheel Press Machine is used to mount and dismount wheels of the railway rolling stock wheelset. It needs 180° reversal of the axle to process the 2nd wheel after the 1st wheel mounted/dismounted. It can generate, record, save and print the pressing force curve.


Technical Parameters:

(*Above parameters are for reference. It can be modified as per customer's actual requirements.)

Structure and Features:

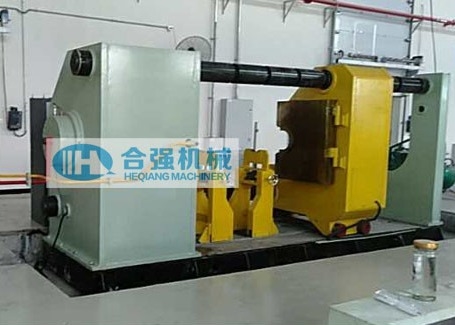

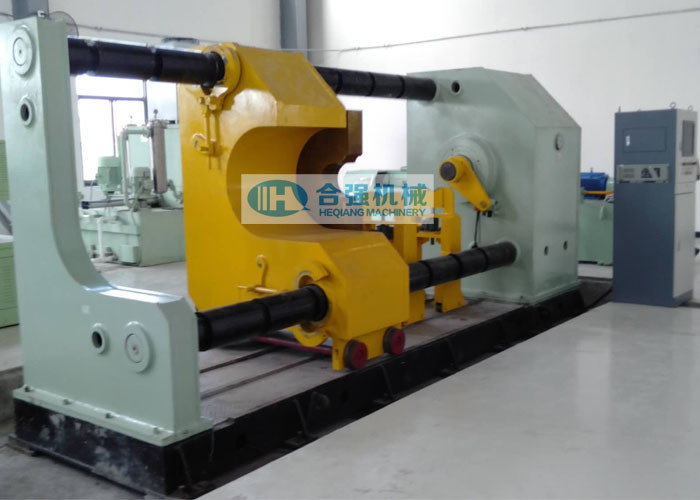

• The wheel press machine is mainly composed of cylinder column, resistant column, rear column, support rods, chassis, caliper mechanism, support trolleys, hydraulic system, eletrical control system.
• The cylinder column and resistant column are combined together via two support rods to form a force frame. The rear clumn is only to supprt these two support rods.
• The cylinder column and rear column are both welded by cast steel and steel plate, and the chassis is welded by steel plate and section steel. All are carried out annealing treatment.
• The U-type opening of the resistant column and rear column is side opening for the convenience of wheelset mounting and dismounting. Only to replace the tooling to meet the requirements of different workpiece.

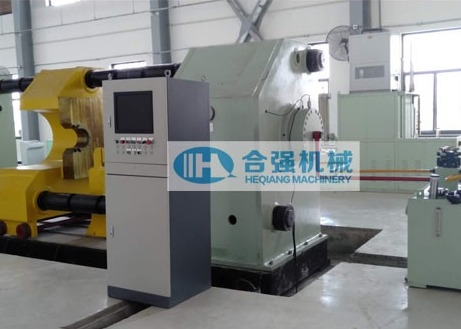

• The cylinder column is provided with a ram cylinder and the piston inside is driven by oil pressure. the piston displacement is detected by displacement sensor and displayed n the industrial computer screen. The piston rod and tooling on the resistant column cooperate with each other to achieve the mounting and dismounting of the workpiece.
• The caliper mechanism is installed on the resistant column. It is used to position the resistant column at the different positions required.
• The wheel press is provided with 2 sets of support trolley for supporting the axle. The trolley can move along the guide rail and the height can be adjusted manually.


Technical Documents:

The following technical documents will be supplied along with the machine when delivery in hard copy and soft copy in English language:

• Operating and maintenance instruction manual;
• General arrangement drawing, Foundation drawing;
• Hydraulic schematic diagram, Electrical schematic diagram;
• Spare part list, Special tool list;
• Product certificate.


Application example:

• Kenya Railways;
• Vietnam Railways;
• Myanmar Railways;
• Clients from Indonesia, Iran, Mongolia and etc.
