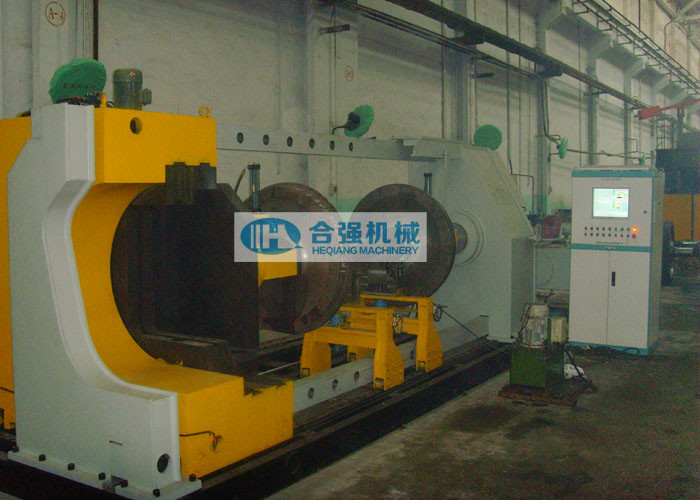

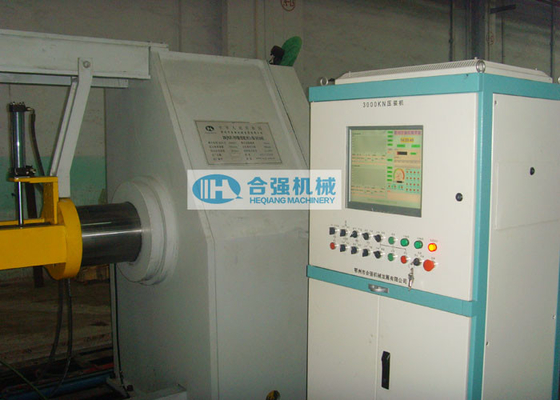

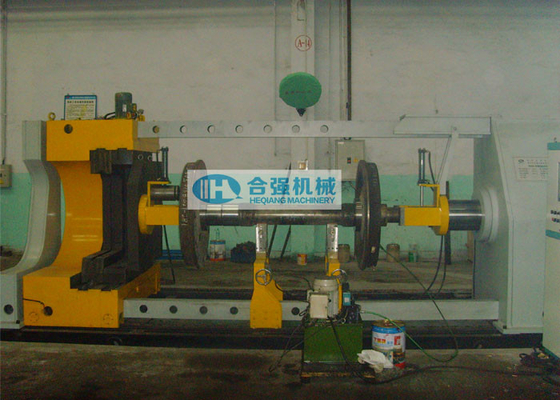

Single Cylinder 3000kN Horizontal Wheel Press For Railway Wheelset Maintenance

Single Cylinder 3000kN Horizontal Wheel Press For Railway Wheelset Maintenance
Single Cylinder 3000kN Horizontal Wheel Press For Railway Wheelset Maintenance
video play

Large Image :  Single Cylinder 3000kN Horizontal Wheel Press For Railway Wheelset Maintenance Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 150 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 30 sets per year
Detailed Product Description
Product Name: Wheel Press Machine Application: Railway Depot, Rolling Stock Enterprises Etc.
Usage: Mount And Dismount Wheelsets Pressing Force: 3000kN
Ram Cylinder: Single-end Cylinder Operation Mode: Semi-automatic
After-service: On-line Service Available Installation Service: Engineers Available For Oversea Installation & Commissioning
High Light:

3000kN horizontal wheel press

,

2600mm horizontal wheel press

,

3mm/s Wheelset Press

3000kN Single Cylinder Horizontal Wheel Press Machine For Railway Wheelset Maintenance


Overview of Hubei Heqiang:
Hubei Heqiang Machinery is the leading manufacturer of wheel set press machines in China. It offers the most advanced wheel set pressing equipment available in the railway and other relevant industry. The wheelset presses are used to mount and dismount all of the elements on the axle (wheel discs, brake discs, gears and bearings). With both single and double cylinder version available for option and capacity range from 200 to 800 tons. Our vast range of machines can satisfy all customer requirements in both maintenance and mass production applications.


Application Scope:

This horizontal Wheel Press Machine is applicable for the mounting and dismounting of wheelset wheels and axle of different types of railway rolling stocks. It's also applicable for mining and steel etc. industry applications.  It needs to turn 180° of the axle/wheelset during the pressing.


Technical Parameters:

 Maximum pressing force

 300 tons

 Ram cylinder

 Single-end cylinder

 Cylinder stroke

 0~900mm

 Approach & Return speed

 Approx. 20 mm/s (Adjustable)

 Pressing speed

 Approx. 3 mm/s (Adjustable)

 Inclination angle of axis plane on two support rods

 30°

 Support Bracket Qty

 2 sets

 Working pressure of hydraulic system

 31.5 MPa

 Noise level during working

 75dB

 Main power supply

 380V/50HZ, AC 3 phase

 Inner distance control accuracy  Manual measurement
 Wheel position difference control accuracy  Manual measurement
 Axle length  1900 ~ 2600 mm
 Wheel diameter  Φ750 ~ Φ1200 mm

(*Above parameters are for reference. It can be adjusted as per customer's actual requirements.)


Main Structure and Features:

  • The wheel press machine is mainly composed of cylinder column, resistant column, rear column, support rods, chassis, caliper mechanism, support brackets, hydraulic system, eletrical control system.
  • Modular structure: The cylinder column and resistant column are combined together via two support rods to form a force frame. The rear clumn is only to supprt these two support rods.
  • Single head ram cylinder, Movable resistant column;
  • Special anti-upsetting centering mechanism;
  • 2 sets of caliper mechanism for positioning the resistant column at the different positions required;
  • 2 sets of support bracket for supporting the axle/wheelset;
  • Siemens PLC and AdvanTech indusial computer;
  • Button operation, easy to learn;
  • Unique hydraulic sysrem, adjustable pressing speed;
  • Manual hoisting, bracket for supporting;
  • It needs 180° turn of the axle/wheelset during the pressing;
  • With pressure force curve record system. It can generate, record, save and print the curve of pressing force vs displacement.



Technical Documents:

The following technical documents will be supplied along with the machine when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

  • Operating and maintenance instruction manual;
  • General arrangement drawing, Hydraulic schematic diagram, Electrical schematic diagram;
  • Foundation drawing;
  • Spare part list, Special tool list;
  • Product certificate/Factory Acceptance Certificate, packing list, etc.



Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.



Application example:

  • Kenya Railways;
  • Vietnam Railways;
  • Myanmar Railways;
  • Clients from Indonesia, Iran, Mongolia and etc.
