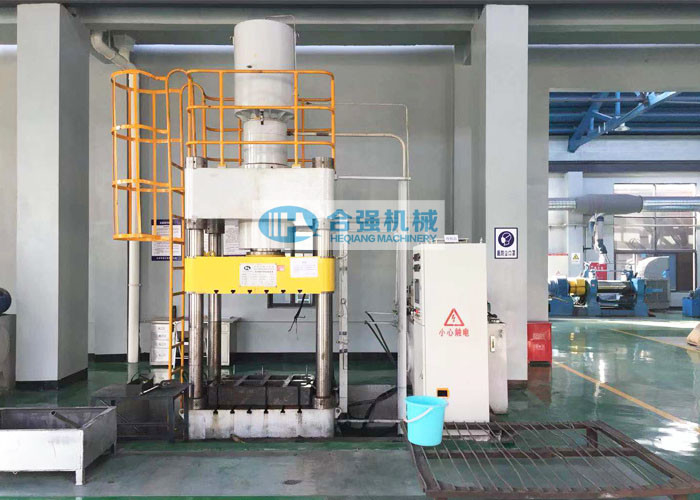

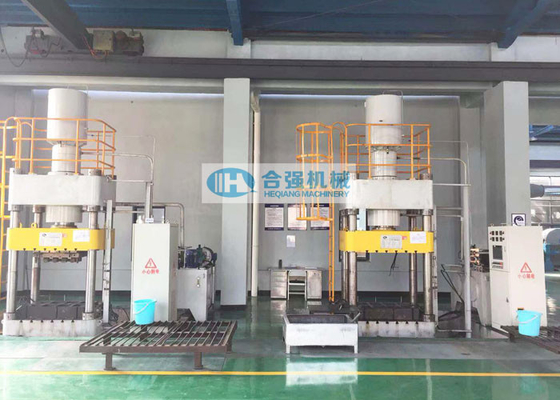

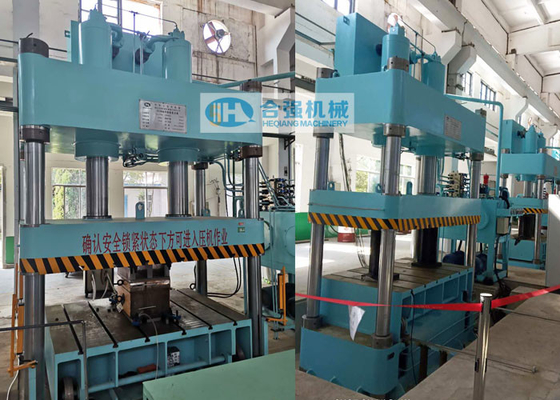

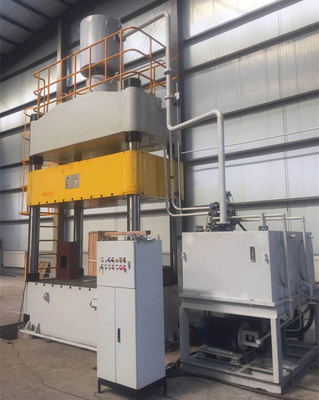

Y32 Four Column hydraulic Press Machine

Y32 Four Column hydraulic Press Machine
Y32 Four Column hydraulic Press Machine Y32 Four Column hydraulic Press Machine Y32 Four Column hydraulic Press Machine Y32 Four Column hydraulic Press Machine

Large Image :  Y32 Four Column hydraulic Press Machine Get Best Price

Product Details:
Place of Origin: Hubei, China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQY32-315
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 120 days after advance payment
Payment Terms: T/T, L/C
Supply Ability: 80 sets per year
Detailed Product Description
Product Name: Hydraulic Press Machine Function: Various Pressing Process
Product Structure: Three-beam Four Column Norminal Force: 315 Tons
Power Source: Hydraulic Condition: New
Cnc Or Not: CNC Warranty: 12 Months
High Light:

Y32 Four Column hydraulic Press Machine

,

315t Four Column hydraulic Press Machine

,

3150kN pillar type hydraulic press

Y32 Series 315t Four Column Hydraulic Press Machine With 800 Stroke

Application scope:
This hydraulic press machine is applicable for the pressing and forming of all kinds of plastic and metail materials , such as punching, bending and flanging etc, and also for calibrating, pressing and forming of grinding wheel, and press forming of plastic and powder products.



Technical Parameters:

 Specification  Data
 Maximum nominal pressure of the main cylinder  315t
 Max work pressure of the hydraulic system  25 MPa
 Max ejection force  63t
 Maximum opening height  1250 mm
 Slider stroke  800 mm
 Ejection stroke  300 mm
 Slider idle speed  Approx.120 mm/s
 Slider working speed  5~12 mm/s
 Slider return speed  60 mm/s
 Effective dimension of the working table  1120x1120 mm (WxD)
 Height of the working table to the ground  650 mm
 Motor power  22kW
 PLC and Display  Siemens brand

(Above parameters are indicative and can be modified according to the customer's actual requirements.)



Machine Features:

  • Three-beam and Four column structure.
  • The main cylinder is placed on the top of the machine body.
  • The hydraulic press machine is mainly composed of upper beam (built-in main cylinder assembly), slider, working table(base), four column/pillar, hydraulic system and electrical control system, etc.
  • The upper beam, slider and working table are connected together through the four columns and locking screw nuts. The working table (base) are fixed on the the ceramic foundation by the anchor bolts.
  • It's provided with T-slots on the upper surface of the working table for fixing the toolings.
  • This series product has independent power mechanism and electrical system, and uses the button common control.
  • The process action uses PLC control to achieve adjustment and semi-automatic operation mode.
  • The working pressure, pressing speed and stroke range all can be adjusted as per process requirements.



Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.


Cooperation contact:
If you are interested in our machines or any assistance required, please feel free to contact us for more information.
