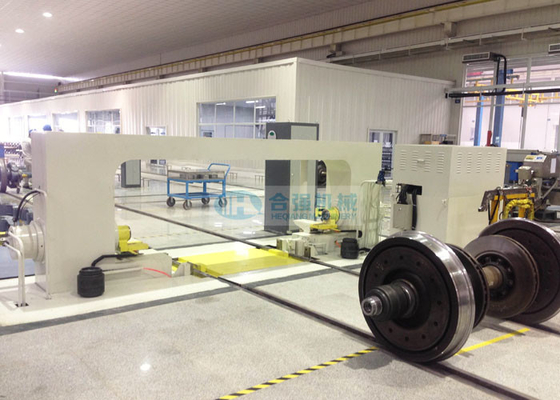

Stationary Wheel Bearing Press Machine For Automatic Mounting

Stationary Wheel Bearing Press Machine For Automatic Mounting
Stationary Wheel Bearing Press Machine For Automatic Mounting
video play

Large Image :  Stationary Wheel Bearing Press Machine For Automatic Mounting Get Best Price

Product Details:
Place of Origin: China
Brand Name: Heqiang Machinery
Certification: ISO9001
Model Number: HQ32
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 120 days after advance payment & design finalization
Payment Terms: T/T, L/C
Supply Ability: 50 sets per year
Detailed Product Description
Product Name: Wheel Bearing Press Machine Application: Railway Depots, Rolling Stock Enterprises
Function: Bearing Mounting Max Pressing Force: 65 Tons
Ram Cylinder Qty: 2 Pcs Operation Mode: PLC+industrial Computer
Warranty: One Year After-sales Service: Engineer Available To Service Machiney Oversea
High Light:

25kW Wheel Bearing Press Machine

,

600kN Wheel Bearing Press Machine

,

31.5MPa Railway Bearings Press Machine

Stationary Wheel Bearing Press Machine For Automatic Mounting , Automatic Bearing Mounting Press , Bearing Mount Press, Bearing Pusher


Application scope:

This Automatic Wheel Bearing Mounting Press is used for the automatic mounting of whole rolling bearings of various types of EMU vehicles.

It can mount the 2 bearings simultaneously. It can generate, record, save and print the pressing curve (Pressure vs displacement, pressure vs time) in the required format. It's only required one operator to run the press.


Technical parameters:

 Max Pressing force  65 tons
 Ram cylinder  Double cylinder
 Maximum cylinder stroke  400 mm
 Pressing speed  0~6 mm/s (variable)
 Resolution of pressing force display   0.1 kN
 Resolution of displacement sensor  0.1 mm
 Coaxiality error of the ram cylinders  ≤​ 1.0 mm
 Cycle time  ≤​ 5 minutes per axle
 Maximum hydraulic system pressure  16 MPa
 Noise level during working  ≤​ 75dB
 Installed power  Approx. 17 kW
 Machine weight  Approx. 6000 kg
 Overall dimension (LxWxH)  Approx. 4560x1100x2250 mm
 Applicable wheelset parameter:
 Max. wheelset weight  2500 kg
 Track gauge  1435 mm
 Axle length  2100 ~ 2500 mm
 Wheel diameter  700 ~ 1000 mm
 Inner diameter of the bearing to be pressed  120 mm, 130 mm
 Outer diameter of the bearing to be pressed  215 mm, 220mm/230mm/240mm

(*Above parameters are indicative, and can be modified as per customer's actual requirements.)


Machine features:

  • The bearing mounting press will be installed in a foundation pit.
  • The bearing mounting press is able to mount both end bearings simultaneously.
  • Double ram cylinders for the mounting operation.
  • Only a single positioning to complete the mounitng of both end bearings.
  • With automatic and manual modes for the operation.
  • Automatic mounting separately of single end bearing.
  • Automatically switch the mounting process.
  • Function of Veto for wrong input and incorrect operation.
  • Overall gantry frame structure design.
  • Special patented upsetting centre devices.
  • Automatic component positioning.
  • Adopt on-line pass-through arrangement.
  • Siemens PLC and AdvanTech industrial computer to control the operation.
  • It can automatically and real-time detect and record the pressing force, adhesion force, pressure difference and holding time during bearing mounting, and automatically judgement: qualified or not.
  • It has the functions of data storage, curve recording, intelligent judgment, curve merging, automatic HP printing of A4 paper in the form of graphics, etc.
  • It's provided with emergency stop button the control panel.
  • The press is equipped with safety protection interlocking device, short circuit, circuit breaking and leakage protection device, and protection device for power failure or accidental shutdown.


Stationary Wheel Bearing Press Machine For Automatic Mounting 0
